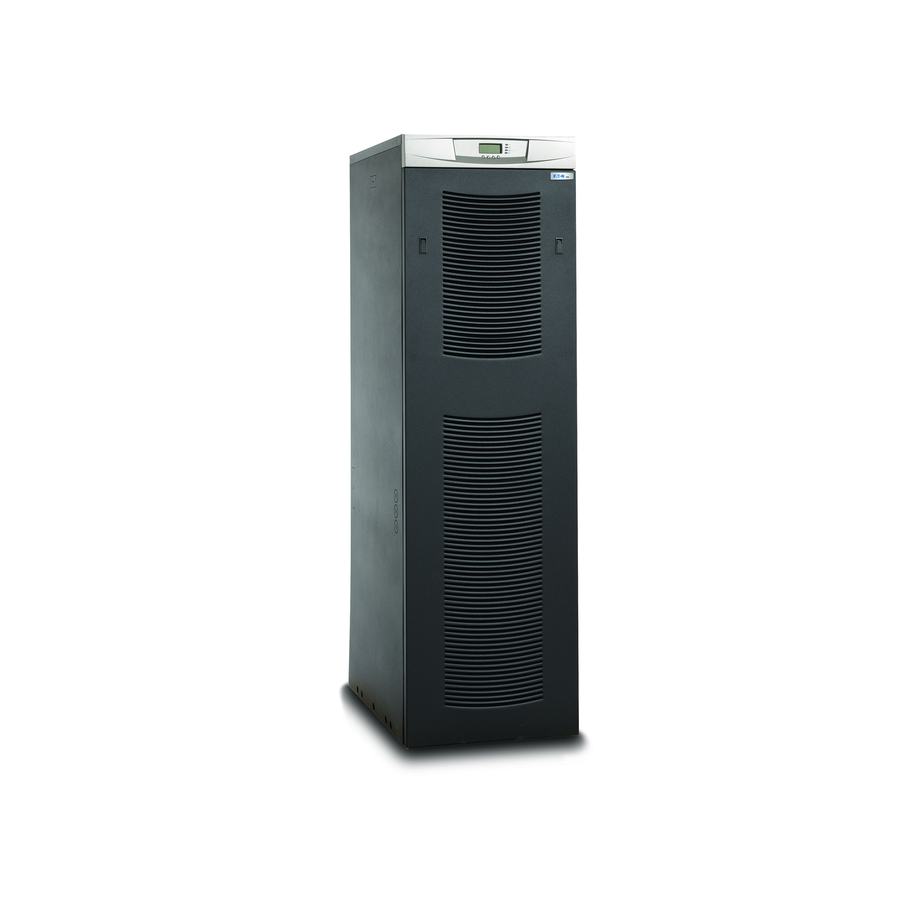

The Eaton 9355 UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solution. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Input Frequency | 65 Hz |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free/Sealed |
| Input Voltage | 220 V AC |
| Output Voltage | 227 V AC |
| Load Capacity (VA) | 30 kVA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 11 Minute |
| Transfer Time | 1 ms |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Bypass Switch | Manual |
| Manufacturer | Eaton Corporation |
| Expansion Slots | |
|---|---|
| Modular Slots | 2 x X-Slot |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
