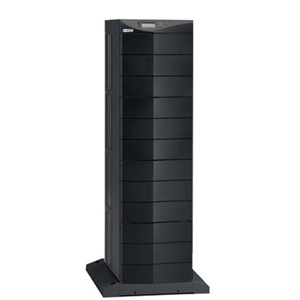

With a scaleable, modular and redundant design, the Powerware 9170+ Rackmount UPS provides advanced backup power and power quality management and offers the highest level of power protection and power quality of any Rackmount UPS power supply in the 3-18 kVA range.
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Input Frequency | 60 Hz |
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage | 220 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (VA) | 15 kVA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 24 Minute |
| Waveform Type | Sine Wave |
| General Features | |
|---|---|
| Bypass Switch | Automatic |
| Alarm | Phase Error |
| Manufacturer | Eaton Corporation |
| Expansion Slots | |
|---|---|
| Modular Slots | 2 x Communications Slot |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 50 dB(A) |
