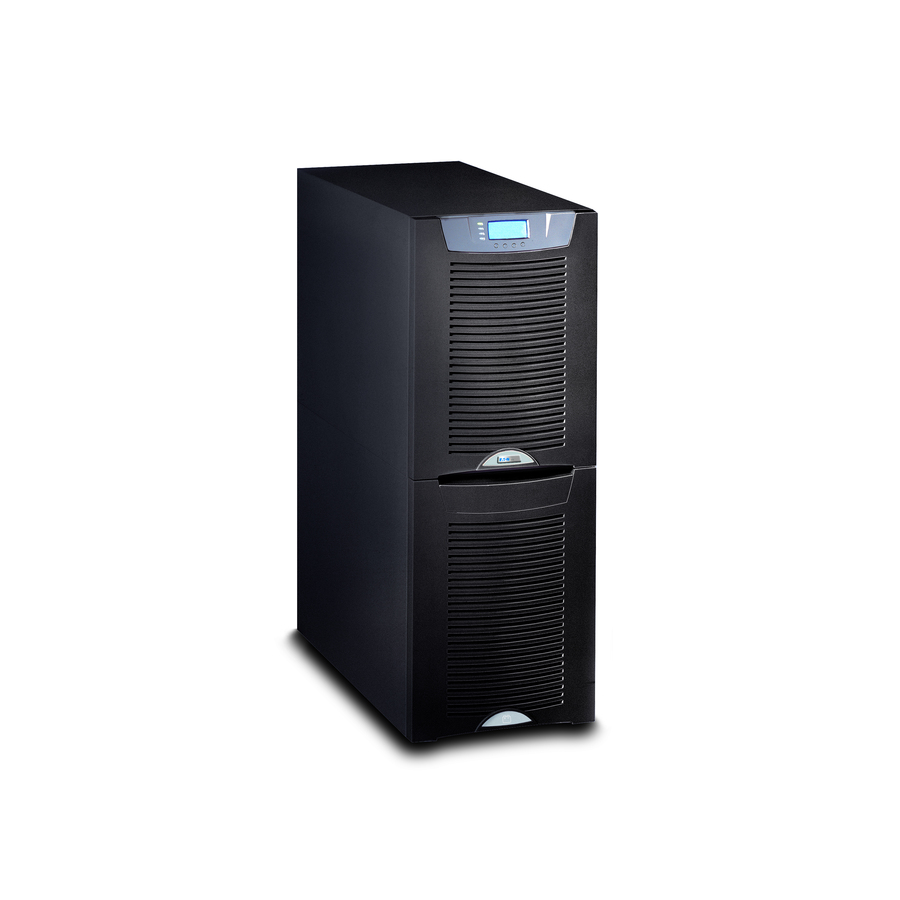

The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free/Sealed |
| Input Voltage | 220 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (VA) | 12 kVA |
| Output Frequency | 50 Hz |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Backup/Run Time (Half Load) | 18.40 Minute |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Expansion Slots | |
|---|---|
| Modular Slots | 2 x X-Slot |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
