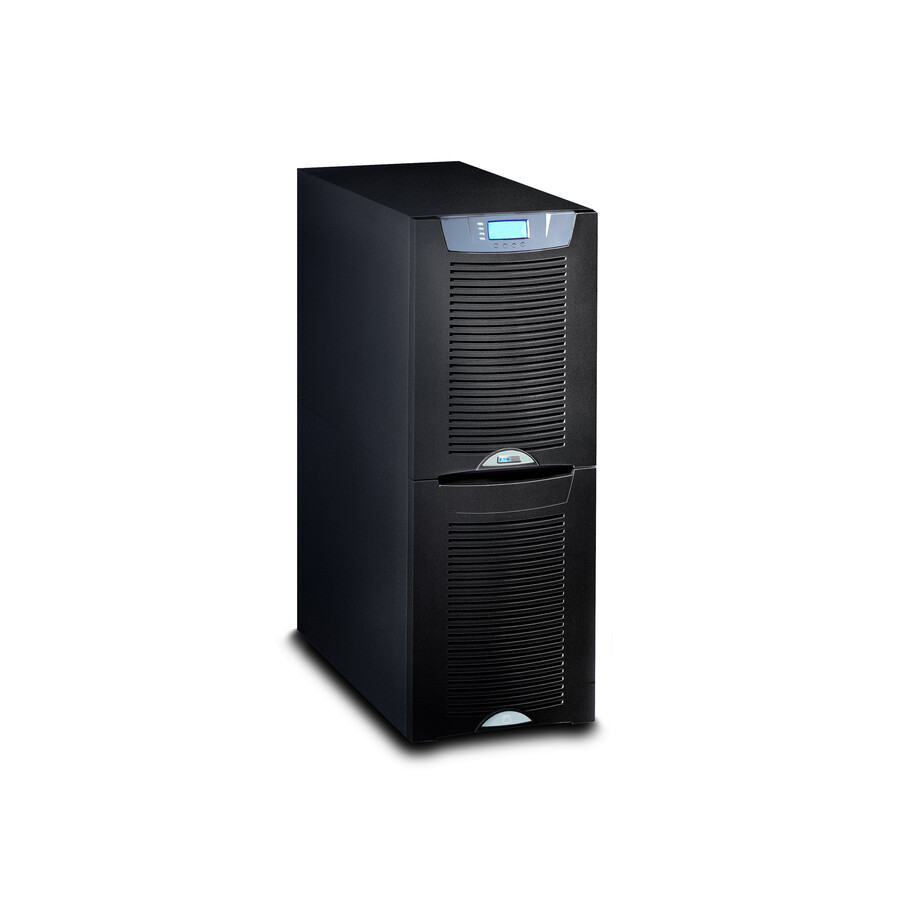

The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Input Frequency | 65 Hz |
| Overload Protection | Yes |
| Receptacle Detail | 16 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | Hardwired |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 32 |
| Battery Characteristics | Maintenance-free/Sealed |
| Input Voltage | 240 V AC |
| Output Voltage | 240 V AC |
| Output Current | 30 A |
| Load Capacity (VA) | 15 kVA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 4.60 Minute |
| Backup/Run Time (Half Load) | 13.10 Minute |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Protection Type | Surge |
| Manufacturer | Eaton Corporation |
| Expansion Slots | |
|---|---|
| Modular Slots | 2 x X-Slot |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
