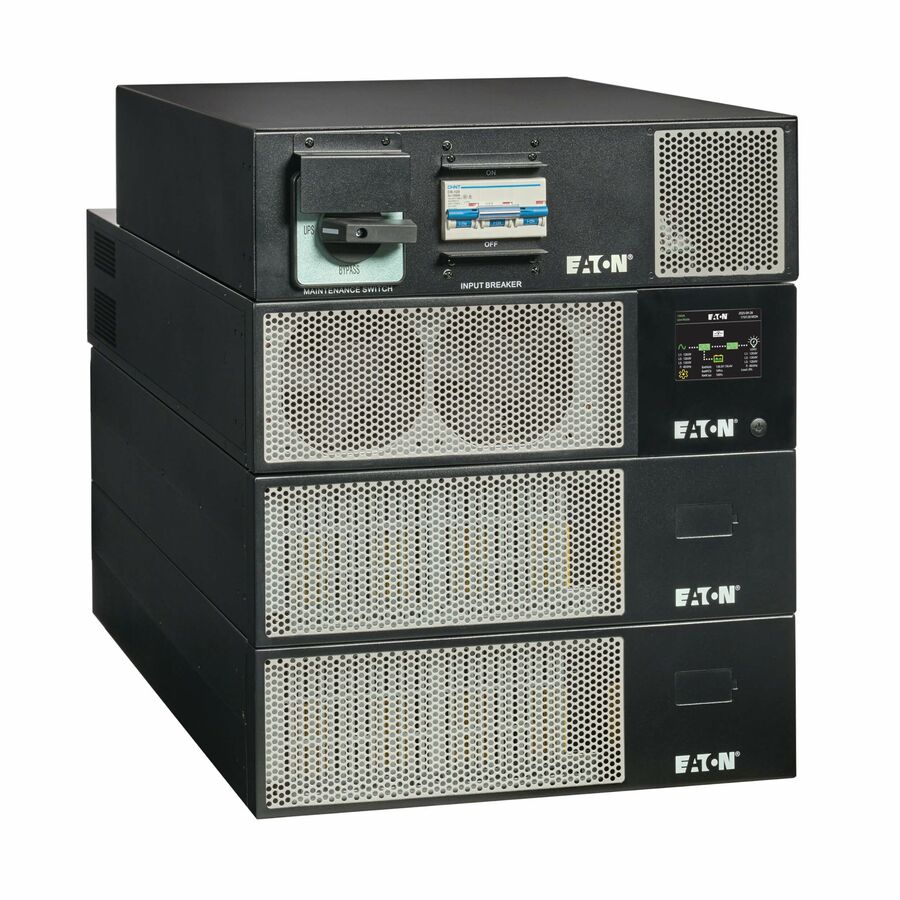

The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart-ideal for critical applications requiring high performance and operational resilience.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- 5000 W load capacity - backup power for your valuable electronics
- 10000 mAh battery capacity for dependable, faster charging to ensure maximum convenience and usability
- 5.40 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Lead Acid battery chemistry for your convenience and better usability
- NEMA L21-20P plug/connector type for convenient usage with added dependability
- NEMA L21-20R receptacle type offers ease of operation with maximum efficiency
- Three Phase phase for better reliability and ensure maximum productivity
- Double Conversion Online UPS with data center application/usage to ensure maximum productivity with added feasibility
- 230 V AC input voltage for maximum feasibility and added productivity
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of External Battery Ca | 1 |
| Backup/Run Time With External | 31 Minute |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Surge Suppression | Yes |
| EPO Port | Yes |
| Receptacle Detail | 2 x NEMA L21-20R |
| Receptacle Type | NEMA L21-20R |
| Plug/Connector Type | NEMA L21-20P |
| Battery Capacity | 10000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 5.40 Hour |
| Input Voltage Range | 53 V AC - 161 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 16 A |
| Efficiency Detail | 91% (Battery Mode) |
| Load Capacity (Watt) | 5000 W |
| Output Frequency | 60 Hz |
| Output Power Factor | 1 |
| DC System Voltage | 120 V DC |
| Waveform Type | Pure Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | RS-232 |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 9U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Maximum Operating Elevation | 3280 ft |
| TAA Compliant | Yes |
