| Brand | |
|---|---|
| Brand | Eaton |
| Screen / Display | |
|---|---|
| Display | LED |
| Power & Battery | |
|---|---|
| Output Voltage | 115 V AC , 120 V AC |
| Phase | Single Phase |
| EMI/RFI Noise Filter | Yes |
| EPO Port | Yes |
| Receptacle Detail | 1 x Hardwired |
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Input Voltage | 120 V AC |
| Load Capacity (Watt) | 300 W |
| Load Capacity (VA) | 500 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.6 |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 558 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 9.09 W |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation | 9843 ft |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 40 dB(A) |

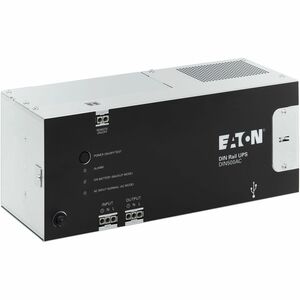

Eaton 500VA 300W 120V AC DIN Rail Industrial UPS - Hardwire Input/Output - For PDU - 100 V AC, 240 V AC16 A - 8 ft Cord Length
