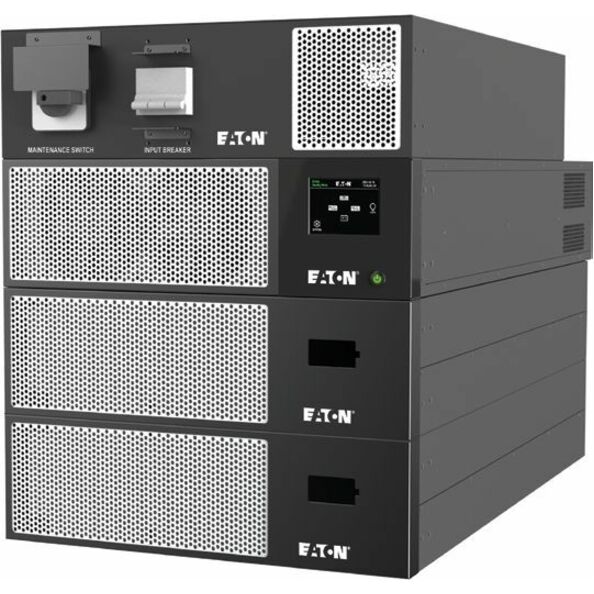

The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart-ideal for critical applications requiring high performance and operational resilience.
- Innovative quick-connect design for easy plug-and-play deployment and service
- Unity power factor (1.0) with 5, 7.5, 13, 15 or 20 kW capacity
- High power density with up to 7.5 kW in 9U and up to 20 kW in 12U
- Up to 92% energy efficiency (97% in ECO mode)
- Network management cards with market-leading cybersecurity
- Configurable in parallel for N+1 redundancy (13, 15 or 20 kW)
- Auto-restart after extended utility outage
- Online, double-conversion UPS
- Backfeed and surge protection
- TAA compliant
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Crest Factor | 3:1 |
| Number of External Battery Ca | 4 |
| Backup/Run Time With External | 32 Minute |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| EPO Port | Yes |
| Receptacle Type | Hard Wire 5-wire |
| Plug/Connector Type | Hardwired |
| Battery Capacity | 10000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Input Voltage Range | 53 V AC - 161 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 71 A |
| Efficiency | 97% |
| Load Capacity (Watt) | 20 kW |
| Output Frequency | 60 Hz |
| Output Power Factor | 1 |
| DC System Voltage | 120 V DC |
| Waveform Type | Pure Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | INDGW-M3 Card |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 21U |
| General Features | |
|---|---|
| Protection Type | Surge |
| Manufacturer | Eaton Corporation |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Maximum Operating Elevation | 3280 ft |
| TAA Compliant | Yes |
