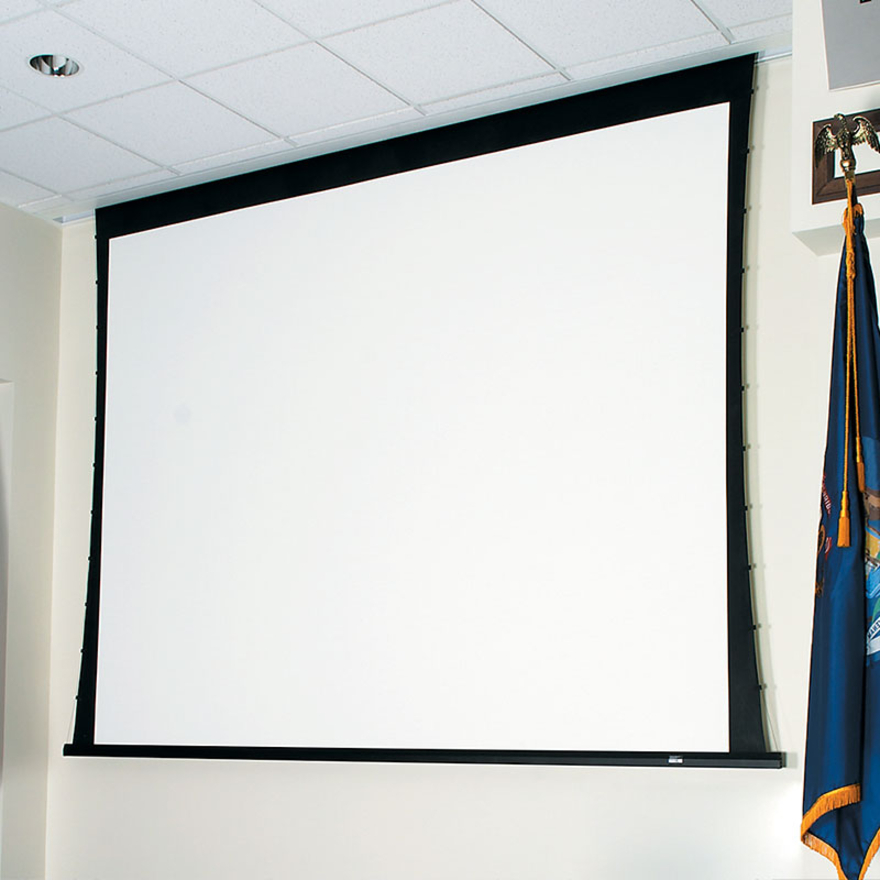

Complete concealment and smooth clean design makes the ceiling-recessed Ultimate Access V ideal for boardrooms, mid-sized training rooms, universities, or home theaters. Screen completely retracts and conceals behind a smooth, lower panel with no exposed screw heads or fasteners. During use, a second motor opens the lower panel upward into the case to allow the screen to descend into the room. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with better image quality. Placement of the ceiling-recessed case during the initial phase of construction eliminates job site damage and allows for installation of the screen at a later time.
- Low voltage, video interface or other controls can be built into housing for below ceiling access.
- Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Independently motorized ceiling closure opens into the case.
- Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
- Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
- Sliding brackets inside case accommodate different size screens.
- Sliding brackets on top of the case allow for adjustments for mounting.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Maximum image width up to 12' (366 cm) wide, depending on surface selection.
- Case dimensions
| Brand | |
|---|---|
| Brand | Draper |
| Screen / Display | |
|---|---|
| Diagonal Image Size | 165" |
| Aspect Ratio | 16:10 |
| Size / Dimensions | |
|---|---|
| Mount Type | Recessed/In-Ceiling Mount |
| Appearance | |
|---|---|
| Screen Folding Mechanism | Electric |
| Screen Fabric | Matt White XT1000VB |
| General Features | |
|---|---|
| Manufacturer | Draper, Inc |
