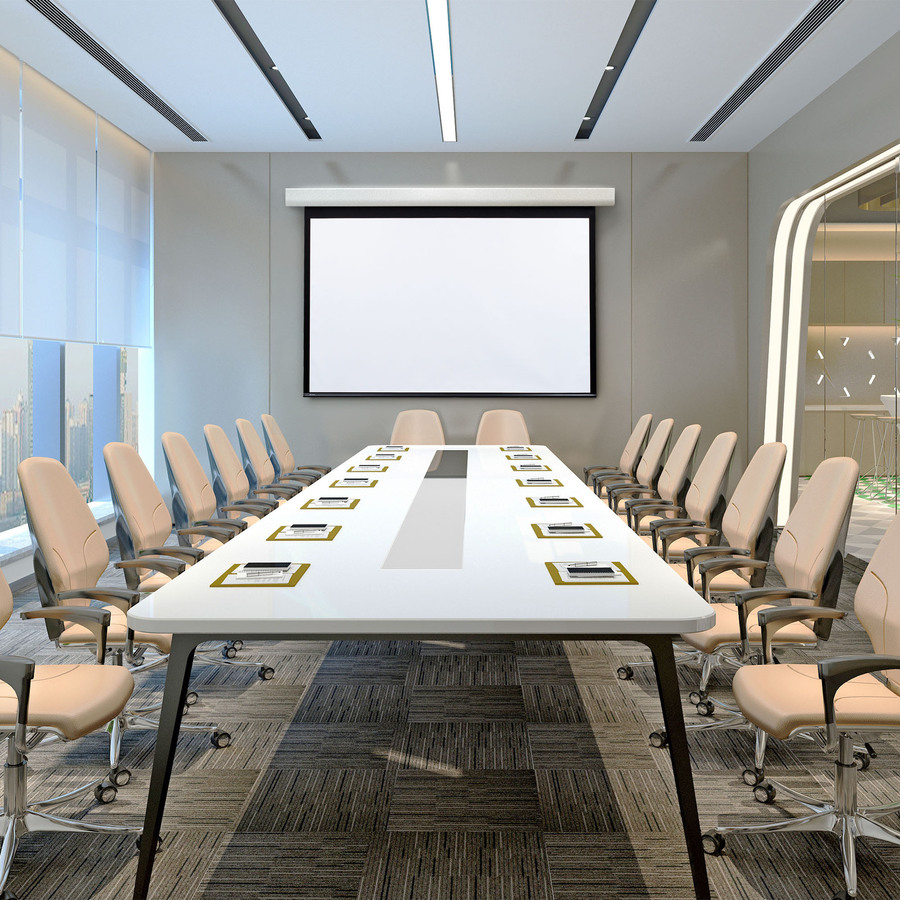

An attractive below-the-ceiling screen, the Acumen® XL E accommodates larger sizes that blend seamlessly into today's elegant interiors. The smooth, curved aluminum housing and white powder coat finish complement any room design. Floating mounting brackets and removable fascia simplify installation. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. A wide variety of motor and control options (including quiet and low voltage) are available.
- Case dimensions: 9-1/4" h x 8-1/8" d 1(235 mm x 206 mm). Extruded aluminum housing with white powder coated or optional black finish.
- Maximum image width up to 18' (5.5 m) wide.
- Available with OptiView line of viewing surfaces.
- HDTV and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for special sizes.
- Black drop standard, depending on screen size. Extra drop above image area available upon request.
- Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
- Floating mounting brackets included.
- Seven-year warranty. *USA and Canada only.
| Brand | |
|---|---|
| Brand | Draper |
| Screen / Display | |
|---|---|
| Diagonal Image Size | 165" |
| Aspect Ratio | 16:10 |
| Size / Dimensions | |
|---|---|
| Mount Type | Ceiling Mount |
| Screen Width | 144" |
| Screen Height | 91.5" |
| Appearance | |
|---|---|
| Screen Folding Mechanism | Electric |
| Screen Fabric | Matt White XT1000E |
| General Features | |
|---|---|
| Manufacturer | Draper, Inc |
