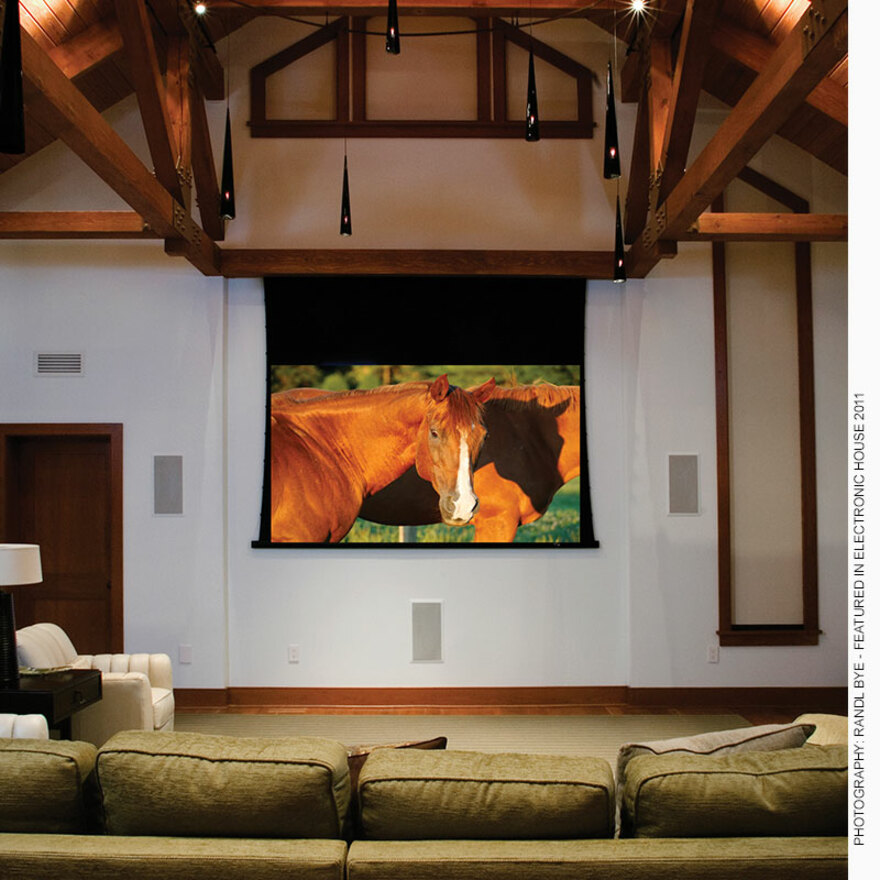

The ceiling-recessed Access V projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Tab-tensioned screens offer a perfectly flat viewing surface and RF welded tabs for a more durable seal. The case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.
- White case standard, black available upon request.
- Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
- Low voltage, video interface or other controls can be built into housing for below ceiling access.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
- Sliding brackets inside case accommodate different size screens.
- Sliding brackets on top of the case allow for adjustments for mounting.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
- Maximum image width up to 16' (488 cm) wide, depending on surface selection.
- Case dimension
| Brand | |
|---|---|
| Brand | Draper |
| Screen / Display | |
|---|---|
| Diagonal Image Size | 226" |
| Aspect Ratio | 16:10 |
| Size / Dimensions | |
|---|---|
| Mount Type | Recessed/In-Ceiling Mount |
| Appearance | |
|---|---|
| Screen Folding Mechanism | Electric |
| Screen Fabric | Matt White XT1000VB |
| General Features | |
|---|---|
| Manufacturer | Draper, Inc |
