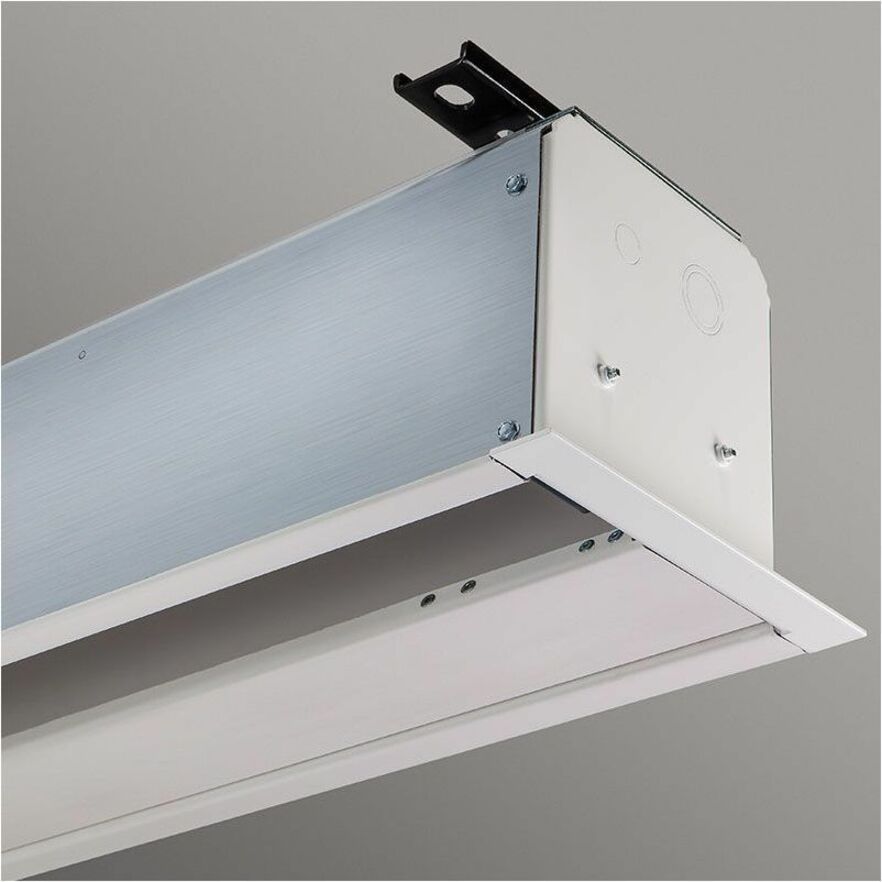

The ceiling-recessed Access V projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. The case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.
- Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
- Maximum image width up to 16' (488 cm) wide, depending on surface selection.
- The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Sliding brackets on top of the case allow for adjustments for mounting.
- Sliding brackets inside case accommodate different size screens.
- Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Low voltage, video interface or oth
| Brand | |
|---|---|
| Brand | Draper |
| Screen / Display | |
|---|---|
| Diagonal Image Size | 123" |
| Aspect Ratio | 16:10 |
| Size / Dimensions | |
|---|---|
| Mount Type | Recessed/In-Ceiling Mount |
| Screen Width | 104" |
| Screen Height | 65" |
| Appearance | |
|---|---|
| Screen Folding Mechanism | Electric |
| Screen Fabric | Matt White XT1000VB |
| General Features | |
|---|---|
| Manufacturer | Draper, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
