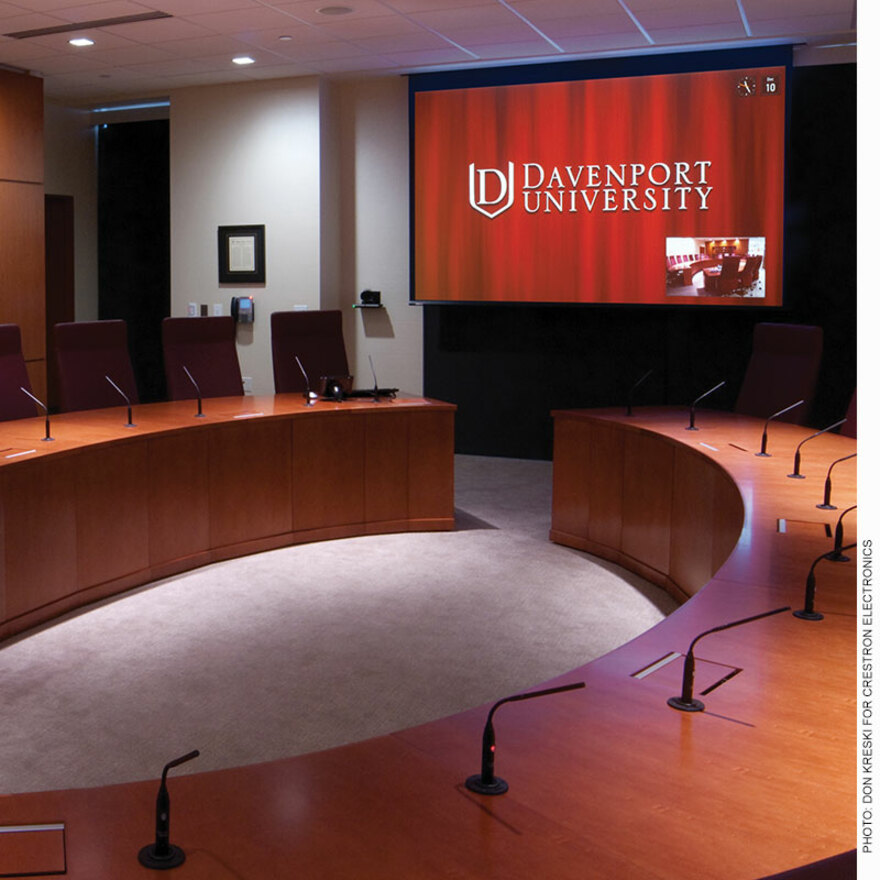

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. The case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.
- Low voltage, video interface or other controls can be built into housing for access from below ceiling.
- Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
- Sliding brackets inside case accommodate different size screens.
- Sliding brackets on top of the case allow for adjustments when mounting.
- Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
- Maximum image width up to 16' (488 cm) wide, depending on surface selection.
- Case dimensions a
| Brand | |
|---|---|
| Brand | Draper |
| Screen / Display | |
|---|---|
| Diagonal Image Size | 165" |
| Aspect Ratio | 16:10 |
| Size / Dimensions | |
|---|---|
| Mount Type | Recessed/In-Ceiling Mount |
| Screen Width | 144" |
| Screen Height | 91.5" |
| Appearance | |
|---|---|
| Screen Folding Mechanism | Electric |
| Screen Fabric | Matt White XT1000E |
| General Features | |
|---|---|
| Manufacturer | Draper, Inc |
