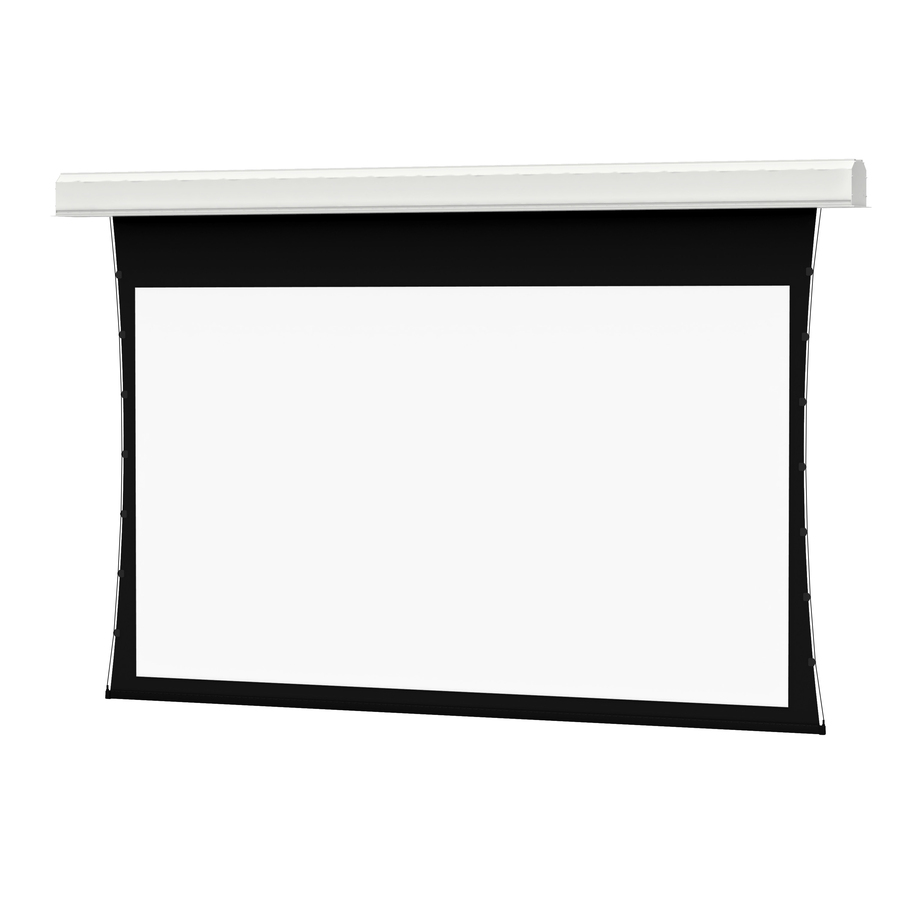

For larger venue installs, the Tensioned Large Advantage® Deluxe Electrol® is designed to eliminate the extra step of finishing the screen with trim. The Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work.
Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.
Tensioned screens ensure the smoothest surface possible, and all Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic.
The screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.
- Provides largest possible picture with maximum efficiency
- Uses the 4:3 aspect ratio for an optimal viewing experience
- 162" screen height for maximum productivity and better reliance
- 216" screen width for comfortable viewing with maximum productivity
- Experience the big screen fun in your own home with this 270" screen
- Offers optimal viewing with excellent color rendition and image contrast with low reflectance
- The electric screen allows you to hide or adjust the screen height required by your application
| Brand | |
|---|---|
| Brand | Legrand Group |
| Screen / Display | |
|---|---|
| Diagonal Image Size | 270" |
| Front Projection | Yes |
| Aspect Ratio | 4:3 |
| Viewing Angle | 60° |
| Screen Gain | 1 |
| Size / Dimensions | |
|---|---|
| Mount Type | Ceiling Mount |
| Screen Width | 216" |
| Screen Height | 162" |
| Appearance | |
|---|---|
| Screen Folding Mechanism | Electric |
| Screen Fabric | Da-Tex |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD Gold |
