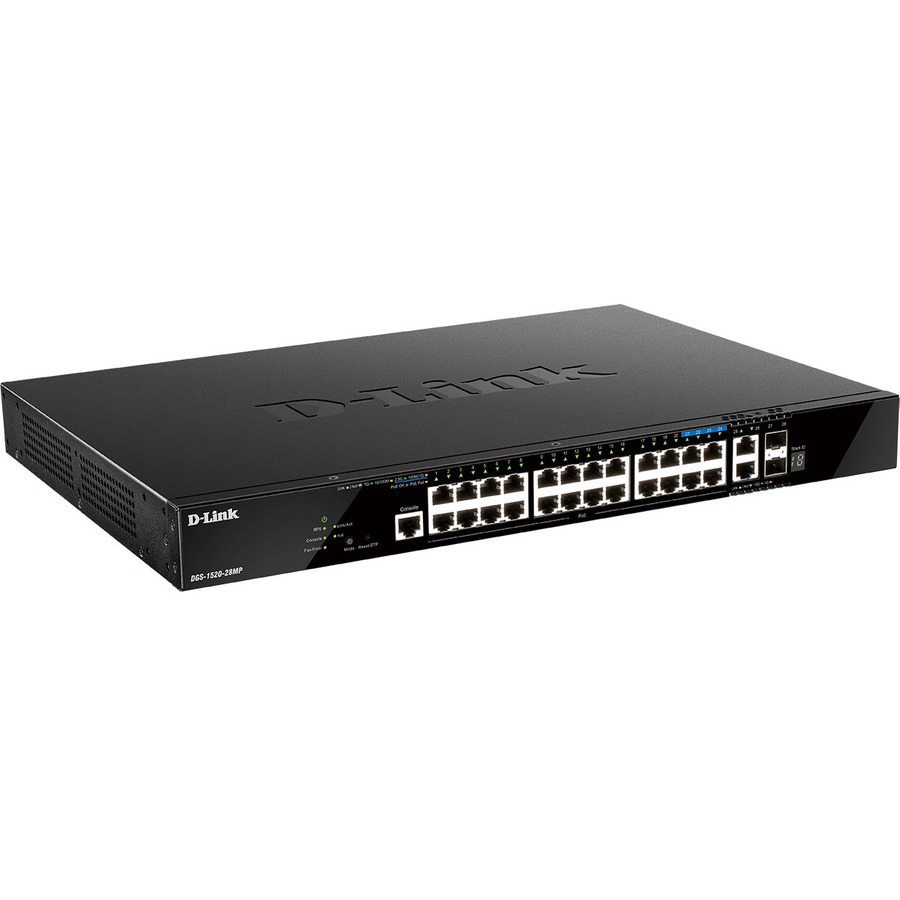

D-Link DGS-1520-28MP Layer 3 Switch

$ 1,129.99 $ 1,129.99
$ 1,129.99

$ 1,129.99 / Units
  • Brand
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Redundant Power Supply Suppor
  • Network Technology
  • Manageable
  • Modular
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Uplink Port
  • Stack Port
  • Number of SFP+ Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Length
  • Compatible Rack Unit
  • Ethernet Technology
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Next Generation Layer 3 Stackable Smart Managed Switch

A new generation of Layer 3 stackable Smart Managed switches to aggregate your Gigabit network with 10G ports for uplink or stacking.

High Availability and Flexibility

  • 24 or 48 x 10/100/1000Base-T ports
  • 20 or 44 x 10/100/1000Base-T PoE and 4 x 2.5GBase-T PoE ports
  • 2 x 10GBase-T and 2 x SFP+ uplink ports
High Bandwidth Stacking
  • Physical Stacking of up to 8 units
  • 2 x 10GBase-T and/or 2 x SFP+
  • 80 Gbps physical stacking bandwidth

Advanced L2 features

  • RSPAN
  • Selective Q-in-Q

Advanced L3 features

  • IGMP v1/v2/v3
  • MLD v1/v2
  • PIM-SM/DM/SSM
  • Static Route
  • RIP/RIPng
  • OSPF

Reliability and Resiliency

  • Ethernet Ring Protection Switching (ERPS)
  • Virtual Router Redundancy Protocol (VRRP)
  • Redundant Power Supply (RPS) support

Management, Provisioning and Automation

  • D-View 7
  • D-Link Network Assistant (DNA)
  • Zero Touch Provisioning (ZTP)
  • Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
  • Cascade to other network devices through the uplink port to expand your local area network
  • Quickly and easily set up a wired network with 26 networking ports
  • No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
  • Can work as layer 3 routing for scalable network design
  • Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
  • Management capability provides control over setup and configuration of your network
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Brand
Brand D-Link Systems
Power & Battery
Redundant Power Supply Suppor Yes
PoE Budget 740 W
Power Source PoE
Power Consumption 453.30 W
Networking & Connectivity
Network Technology 10GBase-X
Layer Supported 3
Ethernet Port
Total Number of Network Ports 26
PoE (RJ-45) Port Yes
Uplink Port Yes
Size / Dimensions
Form Factor Rack-mountable
Compatible Rack Unit 1U
Appearance
Modular Yes
General Features
Manageable Yes
Manufacturer D-Link Systems, Inc
Expansion Slots
Total Number of Expansion Slots 2.0
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Misc Ports
Stack Port Yes
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
