Why You Want It | Plug and Play
Ready to perform right out of the box with no configuration required
Multi-GIGABIT Ports
Multi-Gigabit ports for high data rate transmission
Wi-Fi 6 Ready
Take advantage of the efficiency and speeds provided by Wi-Fi 6
LED Indicator
Multi-Gigabit ports for high data rate transmission
Durable Design
Metal housing enhances the durability
Silent Operation
Fanless design enhances reliability and is suitable for noise-free working environments
QoS Management
Quality of Service for uninterrupted connections
Energy Saving Technology
Designed for low power consumption
Plug-and-play to enjoy fast connectivity

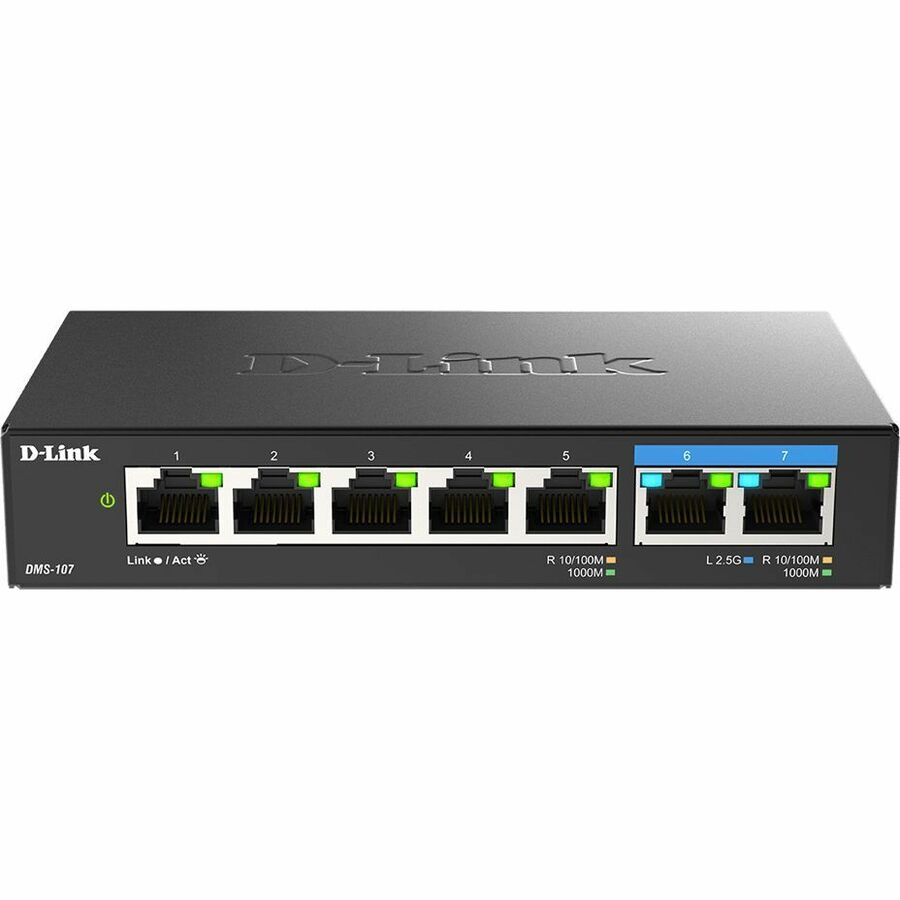

The DMS-107 7-Port Multi-Gigabit Unmanaged Switch offers five Gigabit and two 2.5 Gigabit Ethernet ports for high-speed to meet your high-performance expectations. The Gigabit ports are ready for Wi-Fi 6, providing unlimited speed and performance. DMS-107 also supports IEEE 802.3az Energy-Efficient Ethernet (EEE), which can reduce power consumption and optimize usage. Without complex installation steps, plug-and-play is convenient and easy for every usage scenario.
Silent Operation
The DMS-107 owns a metal out case with a fanless design which can improve heat dissipation and allows noise-free operation in the working area. All the high-quality designs enhance its durability and are ideally suited for Small Office Home Office (SOHO) environments.
Integrated Networking
The auto-sensing ports of DMS-107 flexibly build an integrated workgroup network. Through the auto-negotiation feature, these ports will detect the network speed and allow you to get the maximum speed possible for each device.
Traffic Management
The traffic management of DMS-107 includes IEEE 802.1p Quality of Service (QoS) and IEEE 802.3x Flow Control. The 802.1p QoS feature classified the traffic into 8 priority levels and prioritized by their importance. As for Flow Control, it will temporarily stop data transmission when the switch's input buffer is full, helping to minimize dropped packets. The traffic management features provide a more reliable connection for all your devices.
Green Technology
Under the concept of Eco-friendly, the DMS-107 switch features green technology, such as IEEE 802.3az Energy-Efficient Ethernet (EEE) and link status detection. While the network utilization is low, Energy-Efficient Ethernet can efficiently reduce the switch's power consumption, bringing down the cost in the inactivity duration. Also, the power-saving mode automatically powers down the ports when no link is detected. The link status detection function will effectively save energy and costs.
Simplified Installation
All the ports on the DMS-107 support automatic MDI/MDIX crossover without any cables. Each port connects the server, hub, router, or switch easily just by plugging in the cable. Besides, the DMS-107 ports feature LED indicators. With the indicators, you can easily distinguish link status.
- 5 x Gigabit Ethernet ports, 2 x 2.5 Gbps Ethernet Ports
- Metal housing with fanless design
- QoS support
- Environmentally friendly
- Ideal for Wi-Fi 6
| Brand | |
|---|---|
| Brand | D-Link Systems |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V |
| Power Consumption | 3.37 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 2.5GBase-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 7 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | D-Link Systems, Inc |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x 2.5 Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
