The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv61. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and mediumsized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

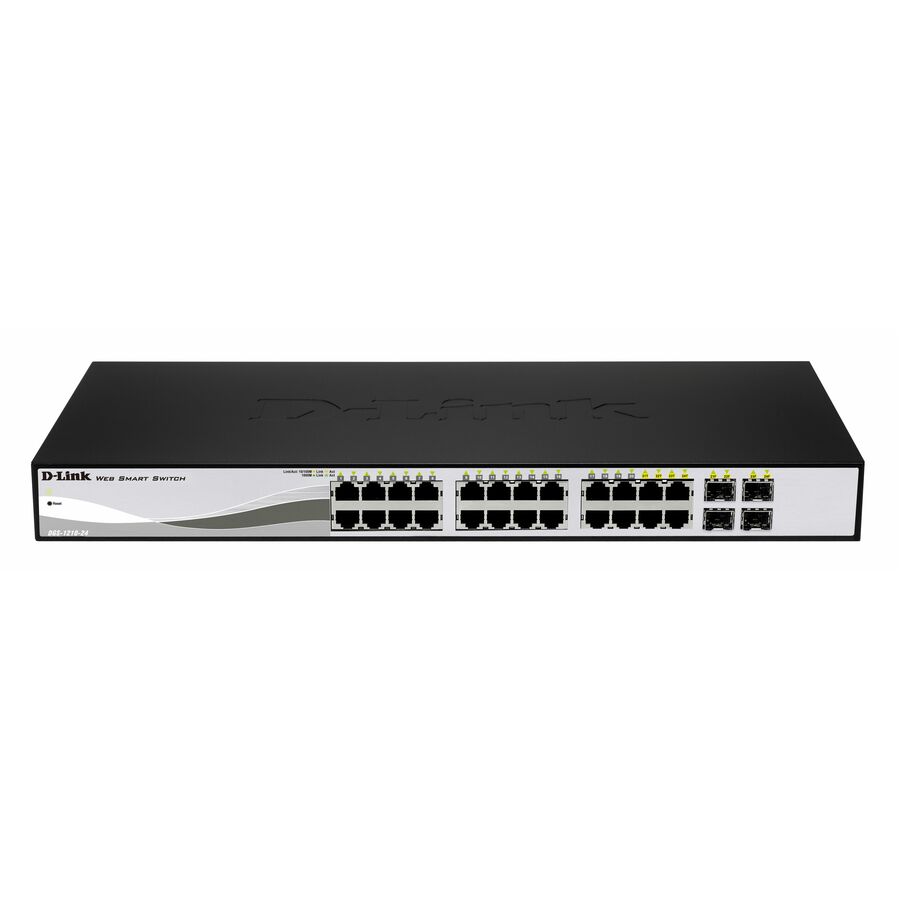

The new DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.
- Ethernet Switch supports increased network bandwidth availability through data switching
- Provides electrical power and network data over a single cable to supported devices such as access points or IP phones
- PoE+ ports support data transmission with power delivery up to 25.5 W over a single cable where outlets are unavailable
- Features 24 networking ports to support the connection requirements of larger workgroups using wired infrastructure
- Built?in power supply supports internal components by providing required operating voltage
- Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
- Desktop form factor supports placement outside dedicated wiring enclosures for accessible device positioning
- Managed capability enables configuration and monitoring functions that support structured network operation
- Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
- Twisted pair cable support enables cost?efficient network connecti
| Brand | |
|---|---|
| Brand | D-Link Systems |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| LRE Port | No |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Number of PoE (RJ-45) Ports | 20 |
| Number of PoE+ (RJ-45) Ports | 4 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Color | Not Specified |
| Modular | No |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | D-Link Systems, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Misc Ports | |
|---|---|
| Management Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5 |
| Miscellaneous | |
|---|---|
| Bypass | No |
| Brand | D-Link Systems, Inc |
| UPC/GTIN | 790069373046 |
| MPN | DGS-1210-28P |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
