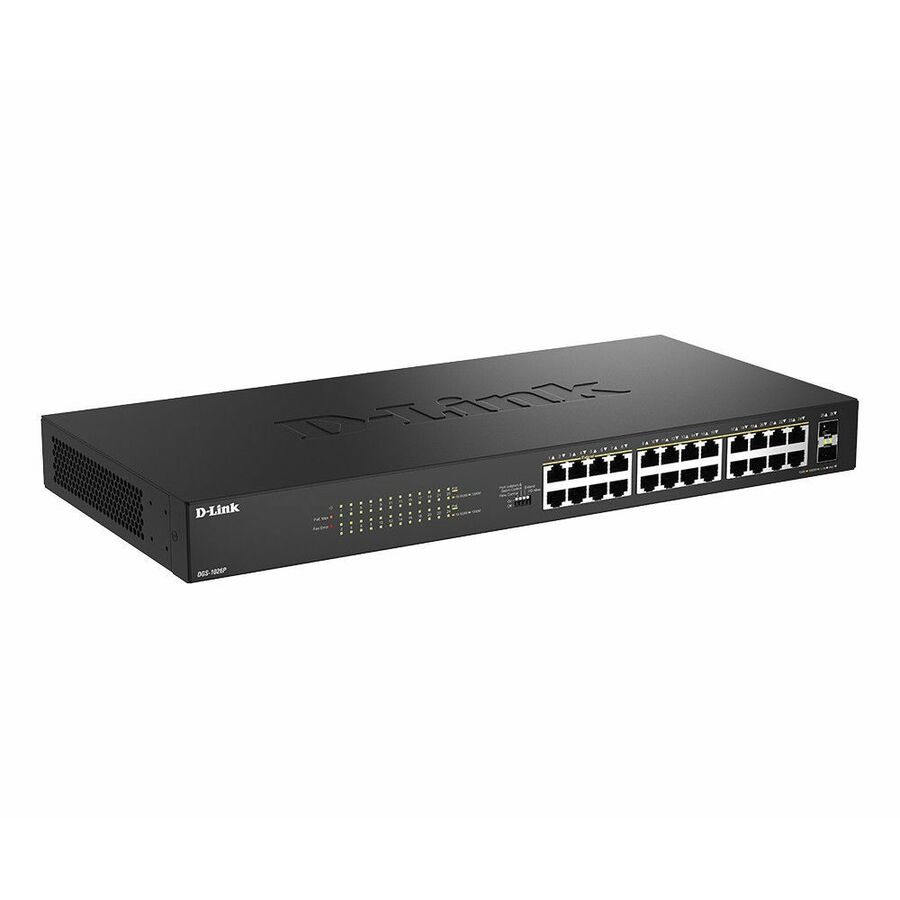

The D-Link DGS-1026P 26-Port Gigabit Unmanaged PoE Switch offers an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds, while reducing energy consumption and minimizing noise output.
Gigabit Connectivity
The DGS-1026P brings the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
Improved Network Efficiency
The DGS-1026P incorporates several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data retransmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.
Innovative Design
The DGS-1026P allows users to quickly enable or disable key port features via the built-in DIP switch to adapt to network needs, including flow control, port isolation & storm control, PD alive, and Extend transmission mode, allowing fast and easy onsite configuration without having to access the web UI. The DGS-1026P also features a durable, compact metal case alongside a smart fan design allowing for improved heat dissipation. The DGS-1026P is rack-mountable and ideal for any business with demanding requirements and a small budget.
Green Technology
The DGS-1026P helps conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality
- Flexible Connectivity:
- 24 Gigabit Ethernet ports for fast network speeds and backwards compatibility-2 SFP uplink ports
- Easy Setup:
- Plug-and-play installation-Auto MDI/MDI-X crossover for all ports
- Convenient DIP Switch Settings:
- -Flow Control-Port Isolation and Storm Control-PD Alive-Extend Mode
- Adequate PoE Power Budget:
- Supports IEEE 802.3af/at standard-Each port supports up to 30 watts, with a total PoE budget of 240 watts
- Comprehensive System Efficiency:
- Features smart fan to adjust fan speed by system requirements-Better acoustic performance and less power loss
- Intuitive PoE Usage Monitoring:
- Real-time feedback on the power consumption of PoE-powered devices
| Brand | |
|---|---|
| Brand | D-Link Systems |
| Power & Battery | |
|---|---|
| PoE Budget | 240 W |
| Input Voltage | 230 V AC |
| Power Source | AC |
| Power Consumption | 288.56 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Frequency | 60 Hz |
| MTBF | 426692.94 Hour |
| Manufacturer | D-Link Systems, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
