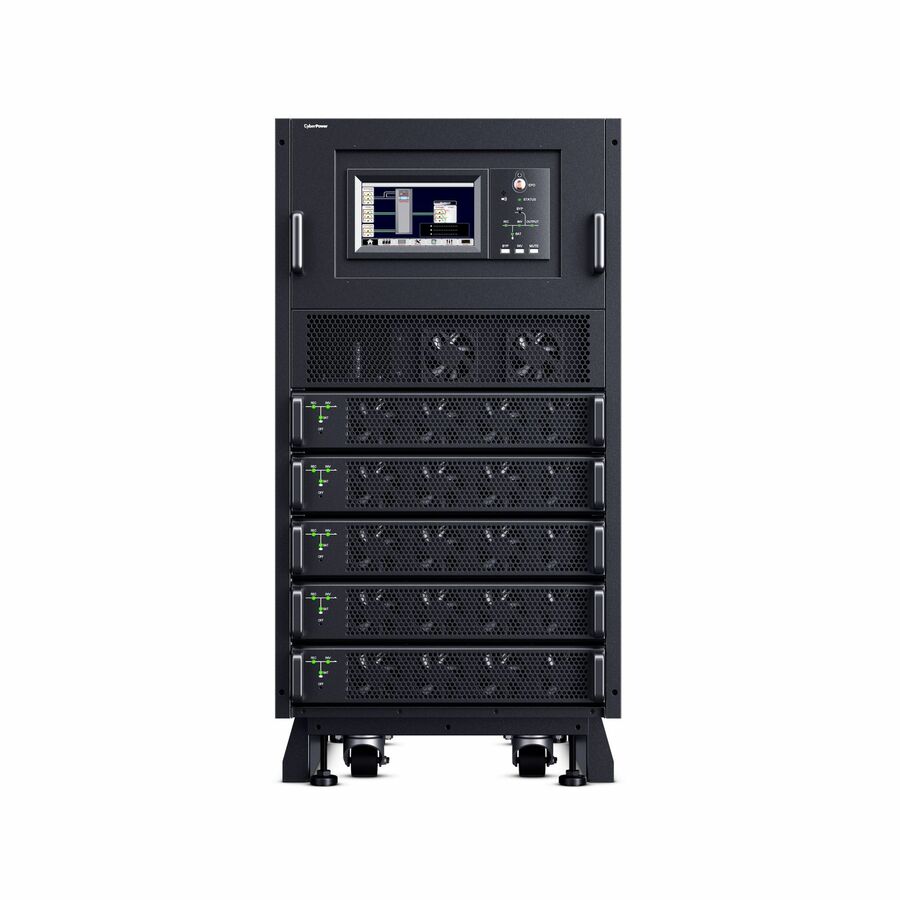

The CyberPower SM040KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.
The SM040KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM040KAMFA 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.
- Capacity: 10-40 kVA / 10-40 kW
- Redundancy: (N+X)
- Power Factor (PF): 1.0
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 208/120V or 220/127V VAC Configurable
- Communication Ports: USB, Serial, Modbus, SNMP, EPO
- Management Software: PowerPanel® Business
- Energy Saving: ECO Mode Efficiency >97.5%
- Warranty: 1 year
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Number of External Battery Ca | 12 |
| Replaceable Battery | Yes |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Overload Protection | Yes |
| AVR | Yes |
| Energy Saving | Online ECO Mode Efficiency >97.5% |
| EPO Port | Yes |
| Receptacle Detail | 1 x Hardwired |
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Battery Characteristics | Hot-swappable |
| Input Voltage Range | 187 V AC - 260 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Load Capacity (VA) | 40 kVA |
| Output Frequency | 60 Hz |
| DC System Voltage | 120 V DC |
| Transfer Time | 0 ns |
| Waveform Type | Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Modular |
| Rack Height | 19U |
| General Features | |
|---|---|
| Protection Type | Backfeed |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 3349.86 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Parallel Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 56 dB(A) |
