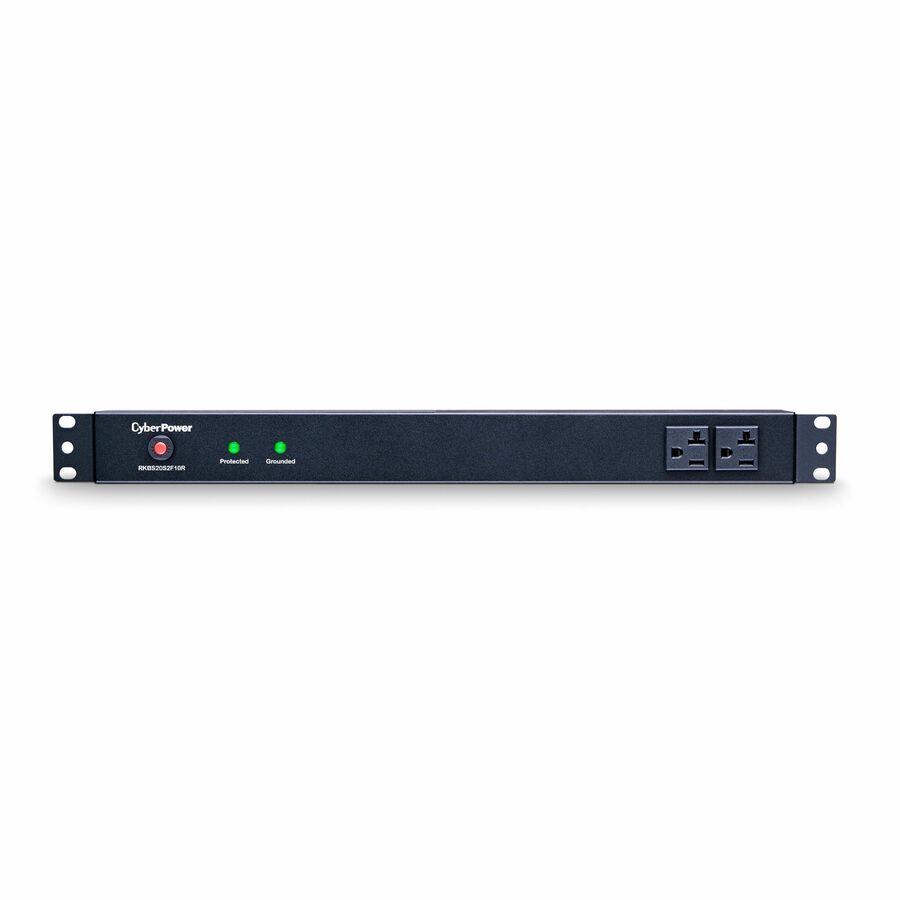

Engineered for the most demanding applications, the professional-grade Rackbar™ Surge Protector RKBS20S2F10R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS20S2F10R also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (2 front, 10 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations.
Features of the RKBS20S2F10R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), and a cord retention tray. The RKBS20S2F10R also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.
- Connected Equipment Guarantee: $150,000
- Warranty: Limited lifetime
- EMI/RFI Filtration: Yes
- Power cord: 15 ft
- Rack size: 1U rackmount
- Surge-protected outlets: Yes
- Outlet type: 12 NEMA 5-20R (2 front, 10 rear)
- Circuit breaker: 20 A
- Plug type: NEMA 5-20P
- Volts: 120 V
- Surge suppression: 1800 J
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Maximum Surge Current | 90 kA |
| Circuit Breaker | Yes |
| Receptacles | 12 x NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 20 A |
| Surge Energy Rating | 1800 J |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Protection Type | Surge |
| Manufacturer | CyberPower Systems, Inc |
| Cables | |
|---|---|
| Power Cord/Cable Length | 15 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
