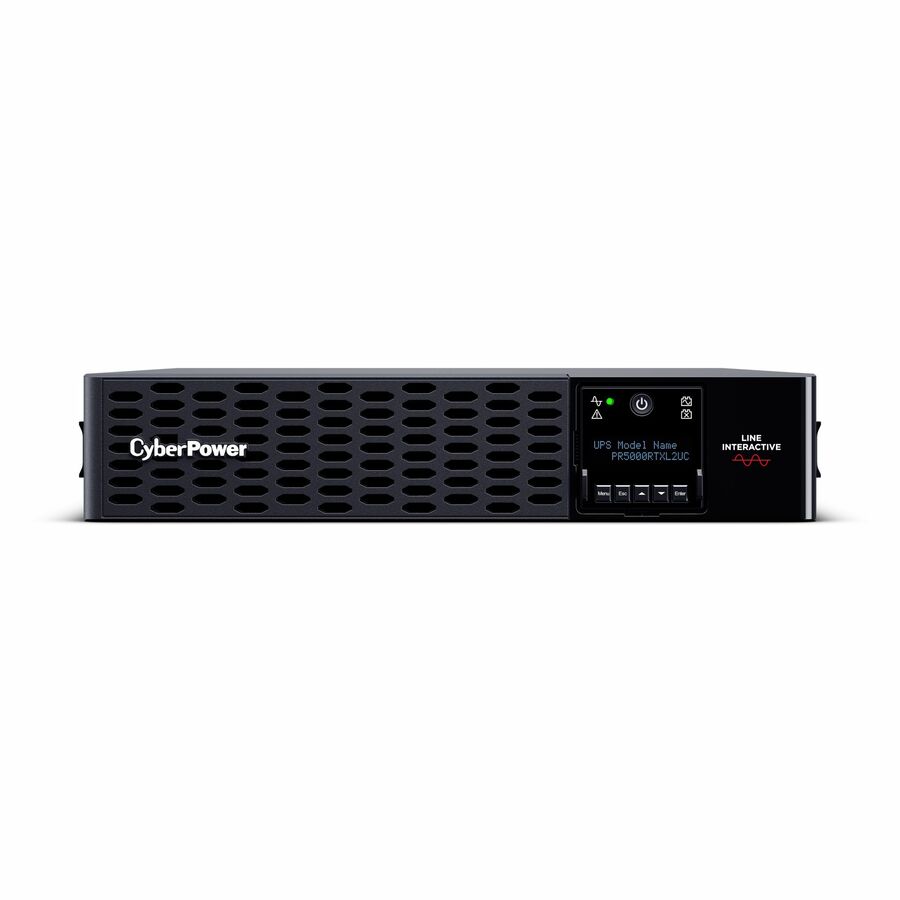

The PR5000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR5000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR5000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts one BP48VP2U04 Extended Battery Module (EBM) for expanded runtime during power outages and includes RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR5000RTXL2UC.
- Capacity: 5000 VA / 5000 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 200-240 VAC ± 5%
- Runtime (half/full): 8.3 minutes / 1.7 minutes
- Plug type & cord: Hardwire Terminal (L6-30P Power Cord Included)
- Outlet types: 2 � 6-20R; 1 x L6-20R; 1 x L6-30R
- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Management software: PowerPanel® Business
- Remote management: Preinstalled RMCARD205
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Critical Load Outle | 1 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Circuit Breaker | Yes |
| Surge Suppression | Yes |
| EPO Port | Yes |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Plug/Connector Type | NEMA L6-30P |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 8 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 148 V AC - 254 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (Watt) | 5000 W |
| Load Capacity (VA) | 5000 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 1 |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack Convertible |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 1312.61 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 9843 ft |
| Maximum Storage Elevation | 49213 ft |
| Energy Star | No |
| Sound Emission (A-Weighted) | 68.5 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $400000 Lifetime |
