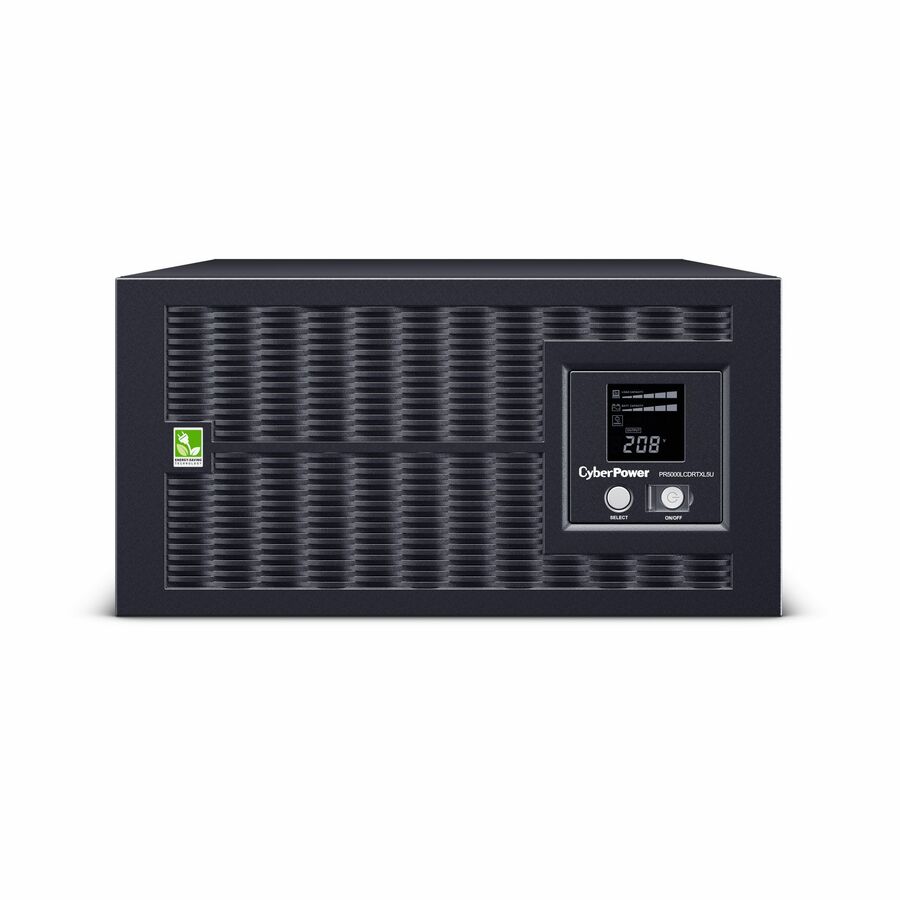

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR5000LCDRTXL5U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR5000LCDRTXL5U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR5000LCDRTXL5U comes with a three-year warranty (including coverage of batteries) and a ,300,000 Connected Equipment Guarantee.
- Connected Equipment Guarantee: $300,000
- Warranty: 3 year
- Environmental sensor: Yes, with optional RMCARD205
- ENERGY STAR® qualified: Yes
- Cisco compatible: Yes
- Remote management: Yes
- Management software: PowerPanel® Business Edition
- Data line protection: Telephone, Network
- Communication: USB, Serial, SNMP, Relay, EPO
- Outlet types: 3 x NEMA L6-30R, 2 x NEMA L6-20R
- Outlets: 5 (2 critical load, 3 non-critical)
- Plug type & cord: NEMA L6-30P, 10 ft. cord
- Waveform: Sine Wave
- Output: 208Vac ± 5%
- Topology: Line Interactive
- Capacity: 5000 VA / 4500 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 5 |
| Emergency Power OFF | Yes |
| Number of Critical Load Outle | 2 |
| Replaceable Battery | Yes |
| Input Frequency | 47 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-11/RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Circuit Breaker | Yes |
| Surge Suppression | Yes |
| EPO Port | Yes |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Type | NEMA L6-30R |
| Plug/Connector Type | NEMA L6-30P |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 16 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 148 V AC - 254 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Load Capacity (Watt) | 4500 W |
| Load Capacity (VA) | 5000 VA |
| Output Frequency | 50 Hz |
| Output Power Factor | 0.9 |
| Backup/Run Time (Full Load) | 10 Minute |
| Backup/Run Time (Half Load) | 26 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Networking & Connectivity | |
|---|---|
| Network Management | Relay-MS Card |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack Convertible |
| Rack Height | 5U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Overload |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 1269.58 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
| Miscellaneous | |
|---|---|
| Product Name | PR5000LCDRTXL5U Smart App Sinewave UPS Systems |
