CyberPower PDU83104 3 Phase 200 - 240 VAC 30A Switched Metered-by-Outlet

$ 1,950.99 $ 1,950.99
$ 1,950.99

$ 1,950.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Remote Outlet Switching
  • Phase
  • Input Frequency
  • Features
  • Protection Type
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage Range
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Product Condition
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

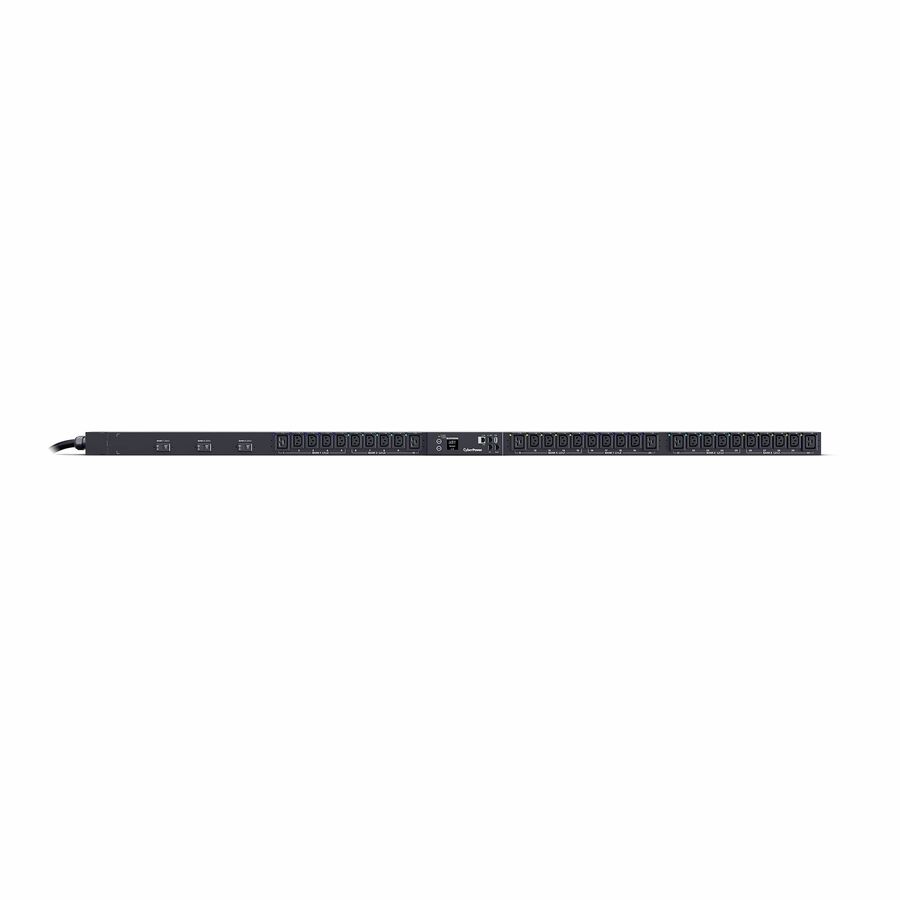

Streamline capacity planning and power management with the CyberPower PDU83104 switched metered-by-outlet 3-Phase PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling, and more.

The PDU83104 supports inputs between 200-240V and includes 30 IEC-320 outlets. Other features include ultra-low power consumption, multi-color outlet LEDs, an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU83104 is protected by a three-year limited warranty.

More from the Manufacturer

  • Dimensions (in): 2.2W x 70.5H x 2.6D
  • Warranty: 3 year
  • Size: 0U Rackmount
  • Cord Length (ft): 10
  • Input plug type: NEMA L21-30P
  • Outlets: (24) IEC-320 C13 + (6) IEC-320 C19
  • Amps: 30A (Derated to 24A)
  • Volts: 200-240V
  • Frequency: 50/60Hz
  • Phase: 3-Phase
  • Notifications: Email, SMS Text, and SNMP Trap
  • Monitoring Level: Metered-by-Outlet
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Switched with Metered-by-Outlet
Remote Outlet Switching Yes
Phase Three Phase
Input Frequency 60 Hz
Receptacle Detail 6 x IEC 60320 C19
Receptacle Type IEC 60320 C19
Plug/Connector Type NEMA L21-30P
Locking Receptacles Cord Retention Tray
Input Voltage Range 200 V AC - 240 V AC
Input Voltage 230 V AC
Output Voltage Range 200 V AC - 240 V AC
Input Current 30 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Product Condition New
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 23°F (-5°C)
Maximum Storage Temperature 113°F (45°C)
Minimum Storage Temperature -4°F (-20°C)
Environmentally Friendly Yes
