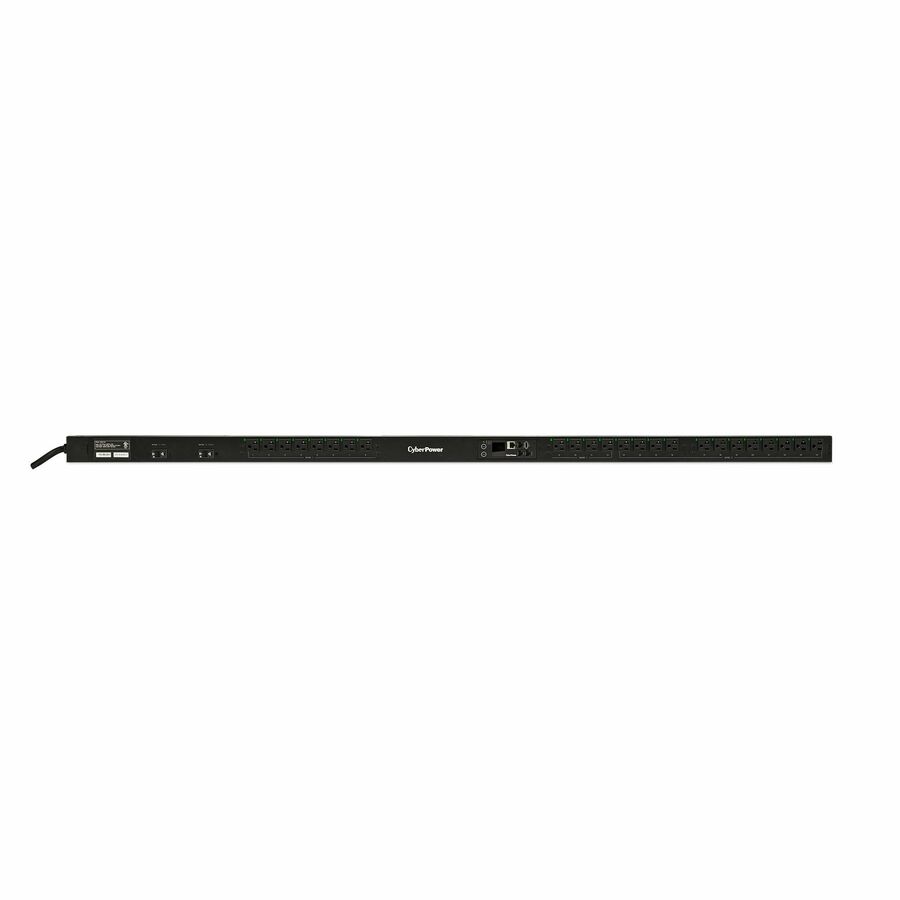

CyberPower PDU81102 100 - 120 VAC 30A Switched Metered-by-Outlet PDU

$ 1,569.99 $ 1,569.99
$ 1,569.99

$ 1,569.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Remote Outlet Switching
  • Phase
  • Input Frequency
  • Features
  • Circuit Breaker
  • Protection Type
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Energy Star
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

Streamline capacity planning and power management with the CyberPower PDU81102 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

The PDU81102 supports inputs between 100-120V and includes 24 NEMA 5-20R outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81102 is protected by a three-year limited warranty.

  • Warranty: 3 year
  • Cord length (ft.): 10
  • Dimensions (in): 2.2W x 65.6H x 1.89D
  • Outlets: 24 NEMA 5-20R
  • Size: 0U Rackmount
  • Input plug type: NEMA L5-30P
  • Volts: 100-120 V
  • Frequency: 50Hz/60Hz
  • Phase: Single
  • Amps: 30A (Derated to 24A)
  • Monitoring Level: Metered-by-Outlet
  • Notifications: Email, SMS Text
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Switched with Metered-by-Outlet
Remote Outlet Switching Yes
Phase Single Phase
Input Frequency 60 Hz
Circuit Breaker Yes
Receptacle Detail 24 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Type NEMA L5-30P
Input Voltage Range 100 V AC - 120 V AC
Input Voltage 120 V AC
Output Voltage 120 V AC
Output Voltage Range 100 V AC - 120 V AC
Input Current 30 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 149°F (65°C)
Minimum Storage Temperature 5°F (-15°C)
Energy Star No
Environmentally Friendly Yes
UL Listed Yes
