CyberPower PDU41005 Single Phase 100 - 240 VAC 20A Switched

$ 830.49 $ 830.49
$ 830.49

$ 830.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Remote Outlet Switching
  • Phase
  • Input Frequency
  • Features
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Country of Origin
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

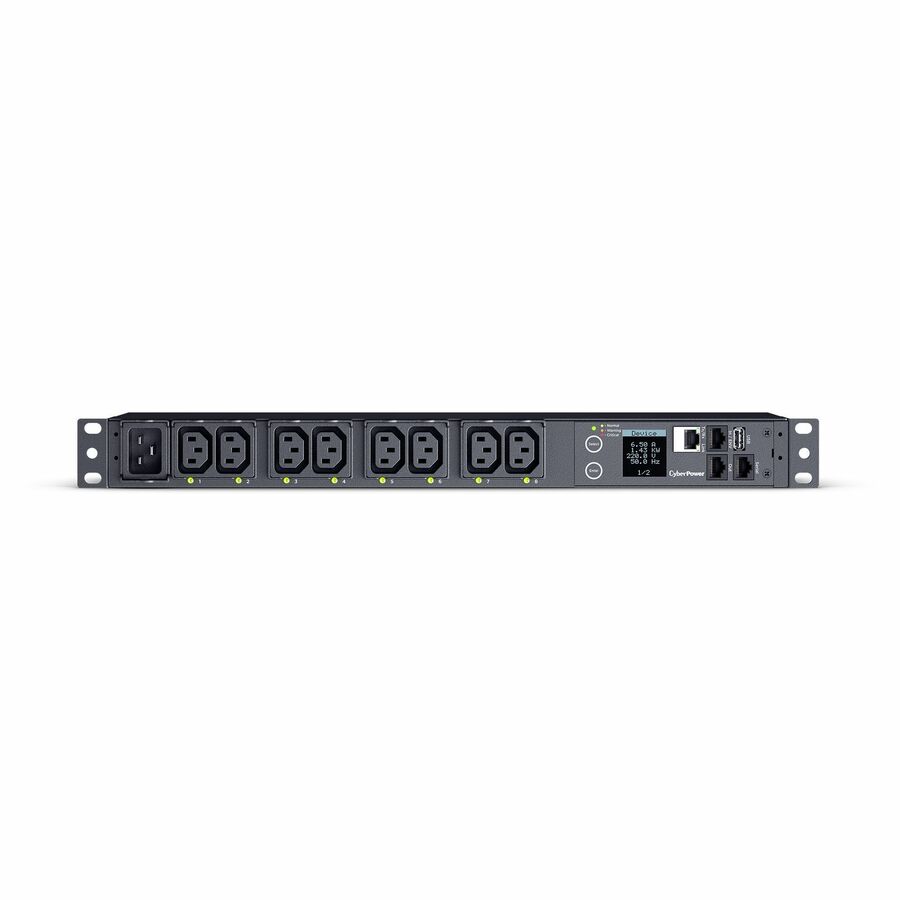

The CyberPower PDU41005 is an 8-outlet, 1U rackmount switched power distribution unit (PDU) that provides 100V-240V 20A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the multifunction LCD.

Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41005 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

  • Warranty: 3 year
  • Plug type: IEC-320 C20
  • Outlets: 8 IEC-320 C13
  • Size: 1U Rackmount
  • Volts: 100V-240V
  • Frequency: 50Hz/60Hz
  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Automated notifications: Email, SMS Text, and SNMP Trap
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Switched
Remote Outlet Switching Yes
Phase Single Phase
Input Frequency 60 Hz
Receptacle Detail 8 x IEC 60320 C13
Receptacle Type IEC 60320 C13
Plug/Connector Type IEC 60320 C20
Locking Receptacles Cord Retention Tray
Input Voltage Range 100 V AC - 240 V AC
Input Voltage 120 V AC
Output Voltage 230 V AC
Output Voltage Range 100 V AC - 240 V AC
Input Current 20 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Mount Type Rack-mountable
Mounting Orientation Horizontal/Vertical
Rack Height 1U
General Features
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 149°F (65°C)
Minimum Storage Temperature 5°F (-15°C)
UL Listed Yes
