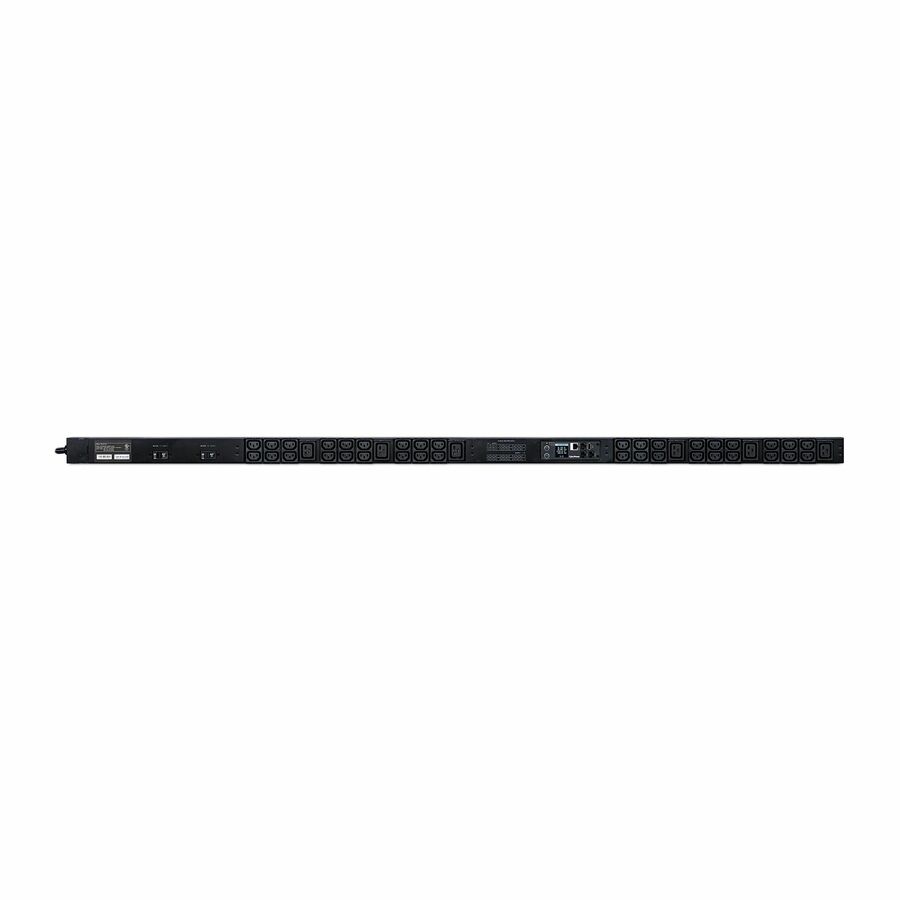

Main Product Image

CyberPower PDU31106 Single Phase 200 - 240 VAC 30A Monitored PDU

$ 1,014.99 $ 1,014.99
$ 1,014.99

$ 1,014.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Phase
  • Input Frequency
  • Features
  • Circuit Breaker
  • Protection Type
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Length
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Country of Origin
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

The CyberPower PDU31106, a 42-outlet (front), 0U rackmount monitored power distribution unit (PDU), provides 200-240V 30A output. PDU31106 distributes power to 36 IEC-320 C13 and 6 IEC-320 C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen.

The PDU31106 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

  • Cord Length (ft): 10
  • Warranty: 3 Year
  • Size: 0U Rackmount
  • Plug Type: NEMA L6-30P
  • Outlets: 36 x IEC-320 C13 + 6 x IEC-320 C19
  • Volts: 200-240V
  • Frequency: 50Hz/60Hz
  • Phase: Single
  • Amps: 30A (Derated 24A)
  • Automated notifications: E-mail, SMS, Text and SNMP Trap
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Monitored
Phase Single Phase
Input Frequency 60 Hz
Circuit Breaker Yes
Receptacle Detail 36 x IEC 60320 C13
Receptacle Type IEC 60320 C13
Plug/Connector Type NEMA L6-30P
Locking Receptacles Cord Retention Tray
Input Voltage Range 200 V AC - 240 V AC
Input Voltage 230 V AC
Output Voltage 230 V AC
Output Voltage Range 200 V AC - 240 V AC
Input Current 30 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Mount Type Wall-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 149°F (65°C)
Minimum Storage Temperature 5°F (-15°C)
Environmentally Friendly Yes
UL Listed Yes
