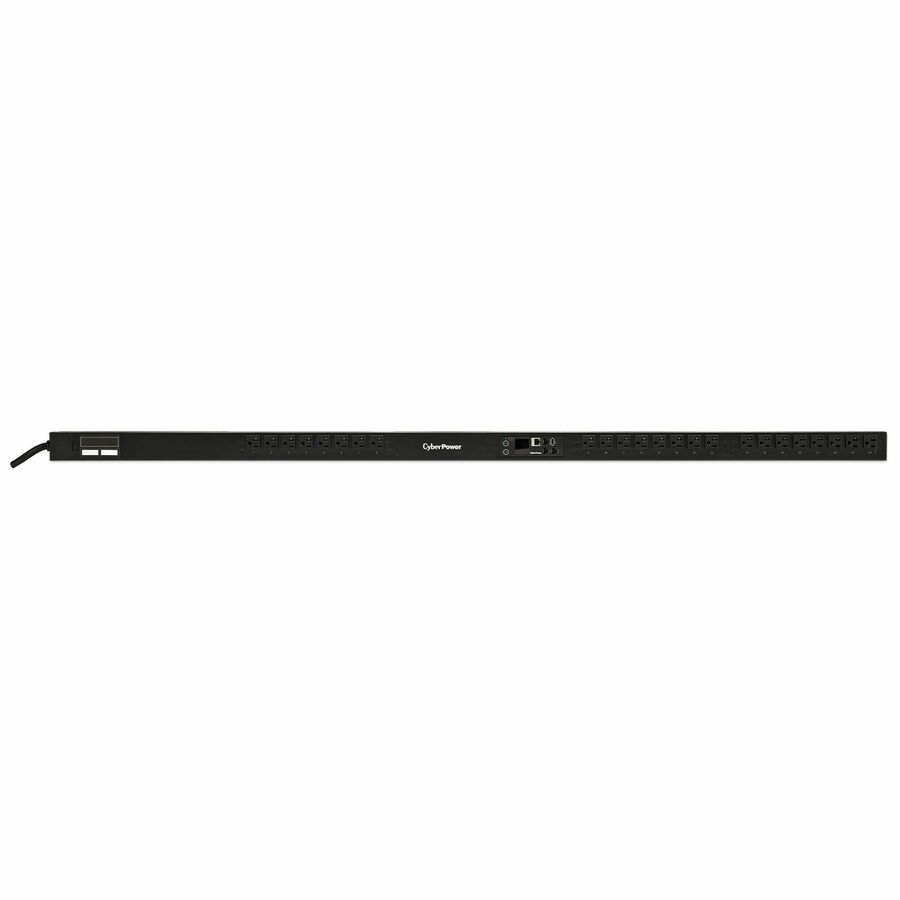

CyberPower PDU31101 Single Phase 100 - 120 VAC 20A Monitored PDU

$ 544.99 $ 544.99
$ 544.99

$ 544.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Remote Outlet Switching
  • Phase
  • Input Frequency
  • Features
  • Circuit Breaker
  • Protection Type
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

The CyberPower PDU31101, a 24-outlet (front), 0U rackmount monitored power distribution unit (PDU) provides 120V 20A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-20P plug with unfiltered electrical pass-through. (May be converted to non-locking NEMA 5-20P plug with included adapter.) Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.

The PDU31101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

  • Automated notifications: E-mail, SMS, Text and SNMP Trap
  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 100-120V
  • Frequency: 50/60Hz
  • Plug type: NEMA (L)5-20P
  • Outlets: 24 NEMA 5-20R
  • Size: 0U Rackmount
  • Warranty: 3 year
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Monitored
Remote Outlet Switching No
Phase Single Phase
Input Frequency 60 Hz
Circuit Breaker Yes
Receptacle Detail 24 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Type NEMA L5-20P
Locking Receptacles Cord Retention Tray
Input Voltage 120 V AC
Output Voltage 120 V AC
Output Voltage Range 100 V AC - 120 V AC
Input Current 20 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Mount Type Wall-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 149°F (65°C)
Minimum Storage Temperature 5°F (-15°C)
TAA Compliant No
Environmentally Friendly Yes
UL Listed Yes
