CyberPower PDU31003 100 - 120 VAC 30A Monitored PDU

$ 837.99 $ 837.99
$ 837.99

$ 837.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Remote Outlet Switching
  • Input Frequency
  • Features
  • Circuit Breaker
  • Protection Type
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Detail
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Length
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Energy Star
  • Certifications & Standards
  • UL Listed
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

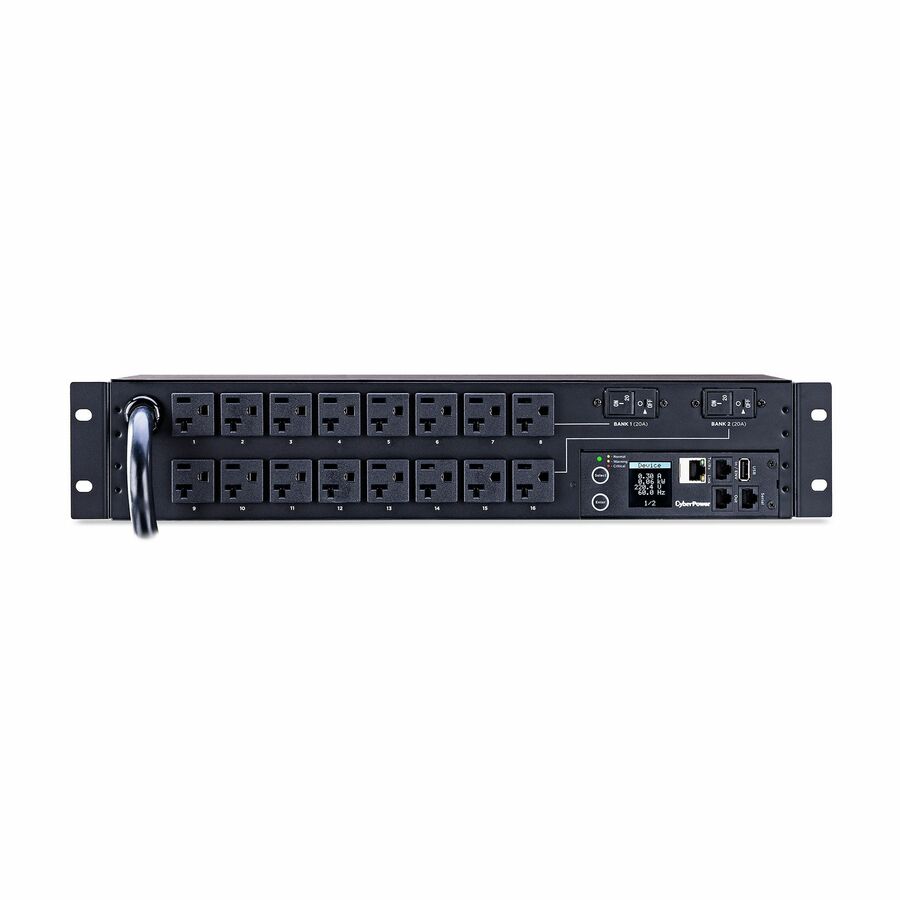

The CyberPower PDU31003, a 16-outlet (front), 2U rackmount monitored power distribution unit (PDU), provides 120V 30A output. PDU31003 distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.

  • Cord Length (ft): 12
  • Warranty: 3 Year
  • Size: 2U Rackmount
  • Plug Type: NEMA L5-30P
  • Outlets: 16 NEMA 5-20R
  • Amps: 30A (Derated to 24A)
  • Volts: 100-120Vac
  • Frequency: 50Hz/60Hz
  • Phase: Single
  • Automated notifications: E-mail, SMS, Text and SNMP Trap
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Monitored
Remote Outlet Switching No
Input Frequency 60 Hz
Circuit Breaker Yes
Receptacle Detail 16 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Detail 1 x NEMA L5-30P
Plug/Connector Type NEMA L5-30P
Input Voltage Range 100 V AC - 120 V AC
Input Voltage 120 V AC
Output Voltage 120 V AC
Output Voltage Range 100 V AC - 120 V AC
Input Current 30 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Mount Type Wall-mountable
Mounting Orientation Horizontal/Vertical
Rack Height 2U
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 12 ft
Compliance & Certification
Maximum Operating Temperature 113°F (45°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 131°F (55°C)
Minimum Storage Temperature 5°F (-15°C)
Energy Star No
UL Listed Yes
CyberPower PDU31003 100 - 120 VAC 30A Monitored PDU - 16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 2U, LCD, 3YR Warranty
