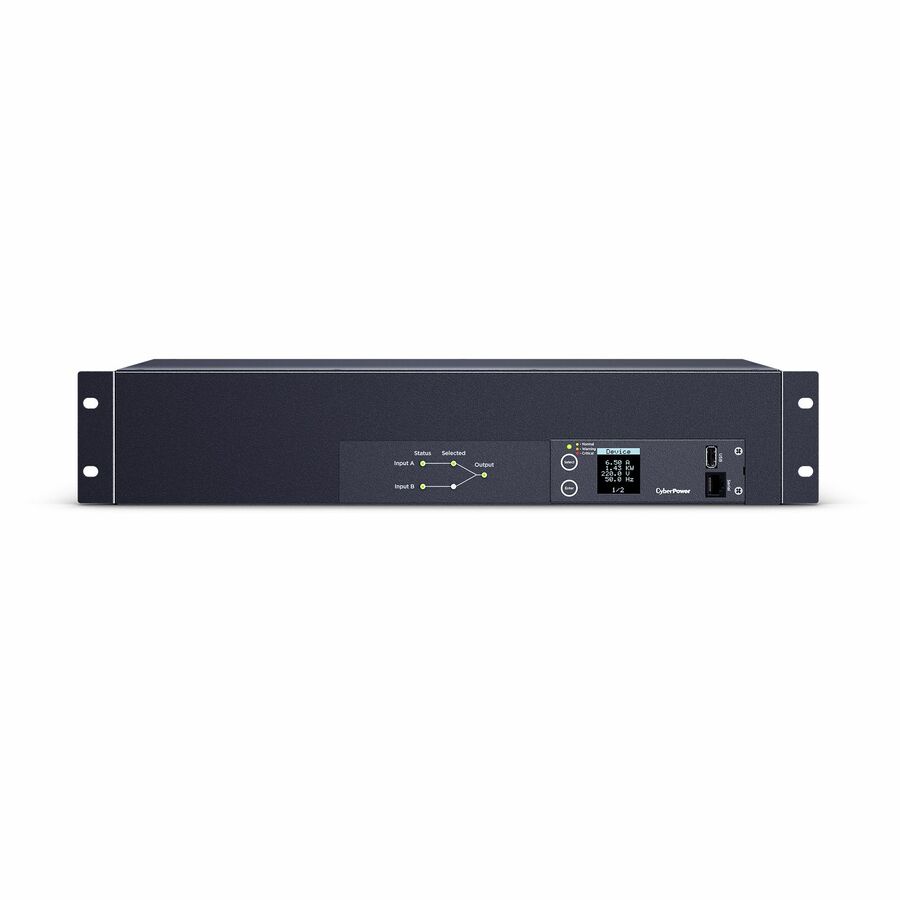

Ensure continued operation of critical devices with the CyberPower PDU24007 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The PDU24007 supports inputs between 200-240V and includes (16) IEC C13, (2) IEC C19, and (1) NEMA L6-30R outlets. Dual NEMA L6-30P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24007 is protected by a three-year limited warranty.
- Phase: Single
- Amps: 30A (Derated to 24)
- Volts: 200-240V
- Frequency: 50/60Hz
- Plug type: 2 x NEMA L6-30P
- Outlets: 16 x IEC-320 C13, 2 x IEC-320 C19, 1 x NEMA L6-30R
- Size: 2U Rackmount
- Warranty: 3 year
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Plug/Connector Detail | 2 x NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Locking Receptacles | Cord Retention Tray |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 30 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack |
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | CyberPower Systems, Inc |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Environmentally Friendly | Yes |
| UL Listed | Yes |
