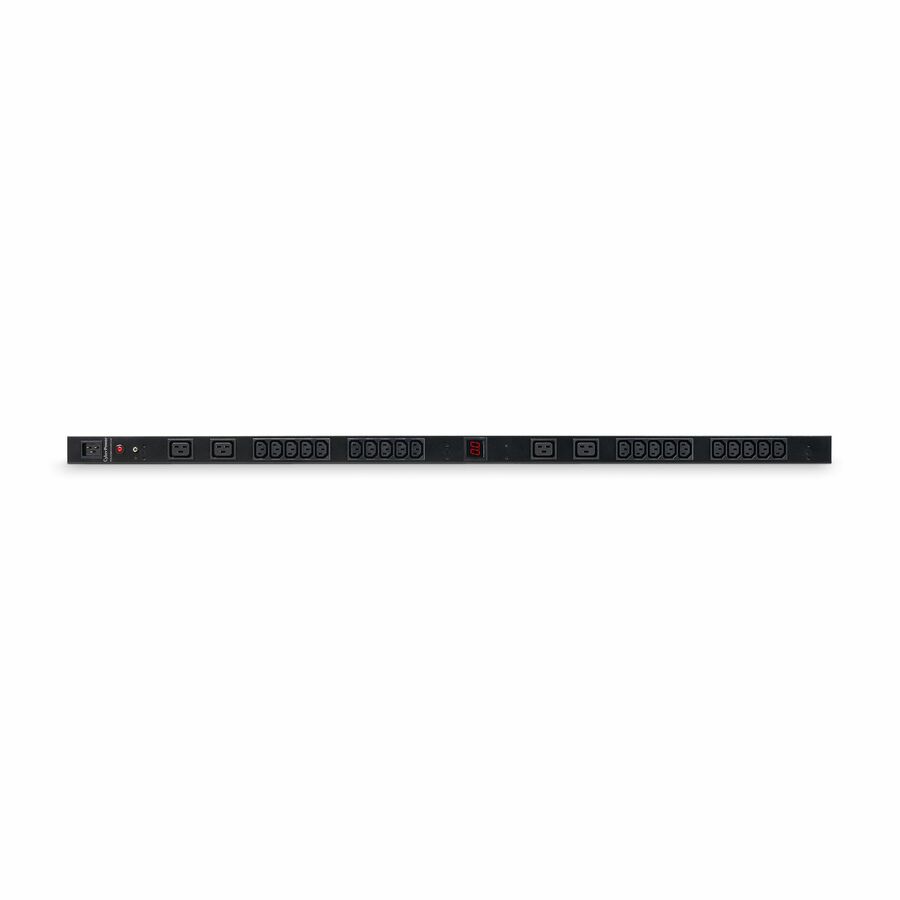

The CyberPower PDU20MVHVIEC24F, a 24-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 20 IEC-320 C13, 4 IEC-320 C19 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
- Cord length (ft.): 10
- Warranty: Limited lifetime
- Size: 0U Rackmount
- Dimensions (in.): 1.75W x 48H x 2.25D
- Outlets: 20 IEC-320 C13, 4 IEC-320 C19
- Plug type: IEC-320 C20
- Amps: 20A (Derated to 16A)
- Volts: 200 - 230 V
- Frequency: 50Hz/60Hz
- Phase: Single
- Digital meter: Displays Amperage
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Receptacle Detail | 20 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | CyberPower Systems, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
CyberPower PDU20MVHVIEC24F 200 - 230 VAC 20A Metered PDU - 24 Outlets, 10 ft, IEC-320 C20, Vertical, 0U, Lifetime Warranty
