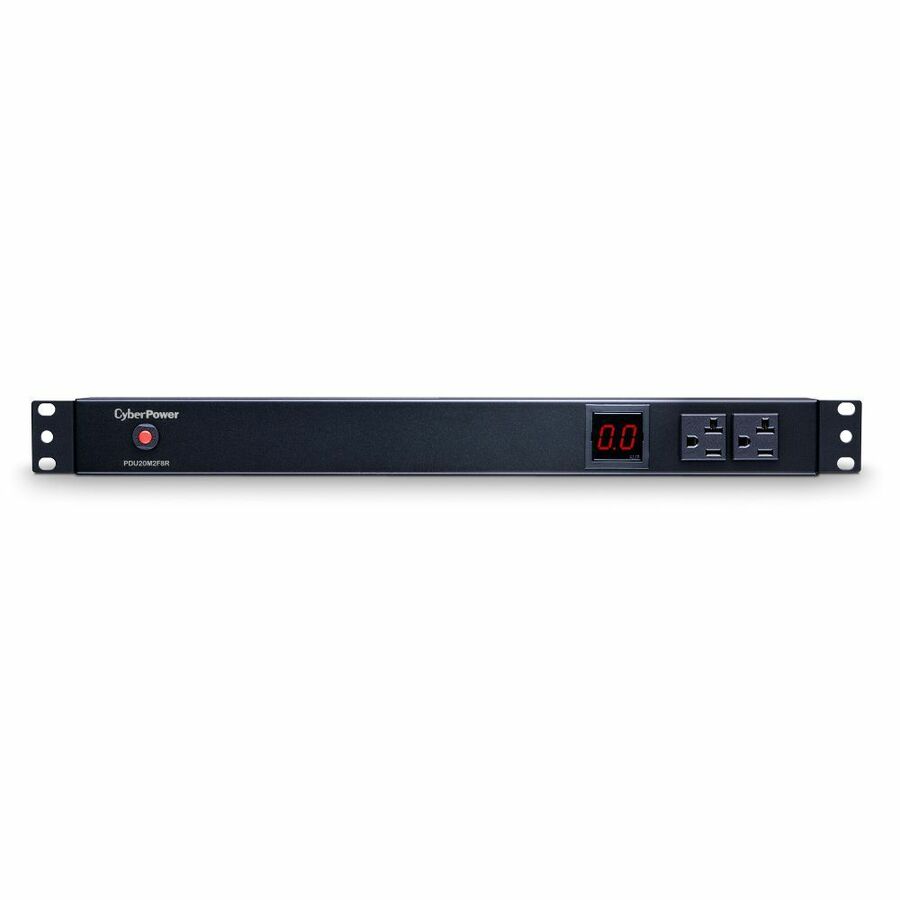

The CyberPower PDU20M2F8R, a 10-outlet (2 front, 8 rear), rackmount metered power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
- Cord length (ft.): 15
- Warranty: Limited lifetime
- Size: 1U Rackmount
- Dimensions (in.): 17.5W x 1.75H x 2.25D
- Plug type: NEMA 5-20P
- Outlets: 10 NEMA 5-20R
- Volts: 100 - 125 V
- Frequency: 50Hz/60Hz
- Digital meter: Displays Amperage
- Phase: Single
- Amps: 20A (Derated to 16A)
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Phase | Single Phase |
| Receptacle Detail | 10 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Input Current | 20 A |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 1U |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | CyberPower Systems, Inc |
| Compliance & Certification | |
|---|---|
| Energy Star | No |
| Environmentally Friendly | Yes |
