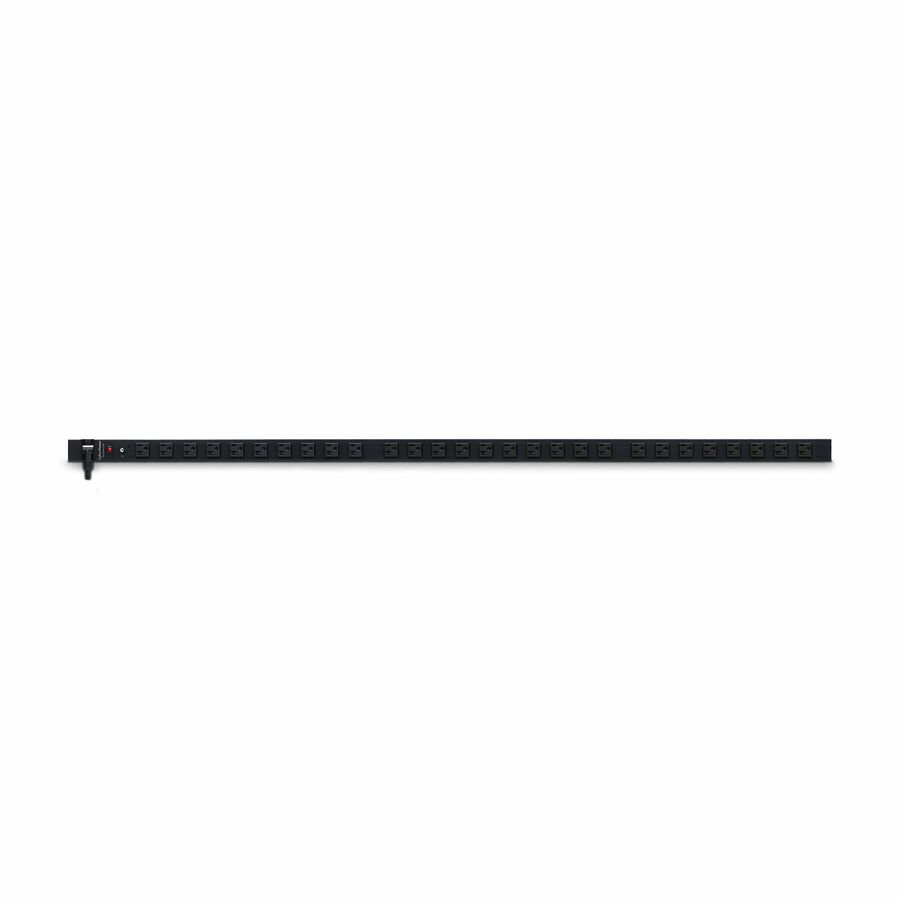

The CyberPower PDU20BVT28F, a 28-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 28 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVT28F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
- Limited lifetime
- 10
- Warranty:
- 1.75W x 60H x 1.5D
- Cord length (ft.):
- 0U Rackmount
- Dimensions (in.):
- 28 NEMA 5-20R
- Size:
- NEMA L5-20P
- Outlets:
- 50Hz/60Hz
- Plug type:
- 100 - 125 V
- Frequency:
- Single
- Amps:
- 20A (Derated to 16A)
- Volts:
- Phase:
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Receptacle Detail | 28 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | CyberPower Systems, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | PDU20BVT28F 100 - 125 VAC 20A Basic |
CyberPower PDU20BVT28F 100 - 125 VAC 20A Basic PDU - 28 Outlets, 10 ft, NEMA L5-20P, Vertical, 0U, Lifetime Warranty
