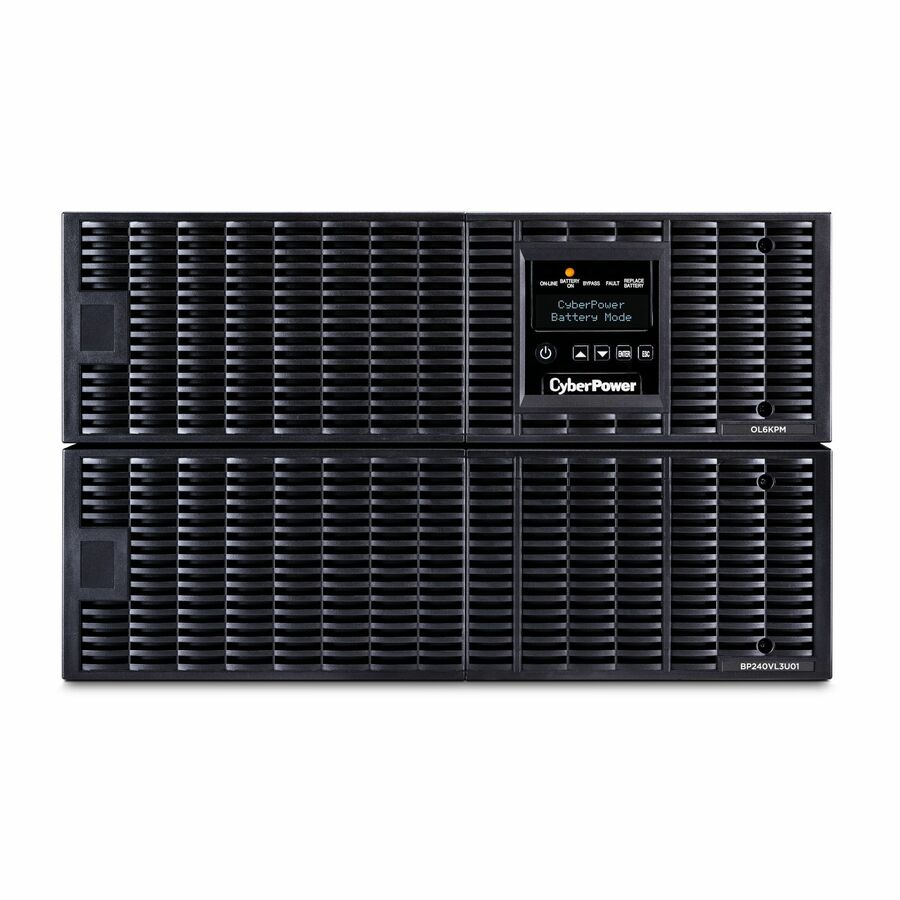

The CyberPower Smart App Online OL6KRT is a 6U rack/tower UPS with double-conversion. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. The OL6KRT is generator compatible and delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected.
The OL6KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable), and it has a RMCARD205 pre-installed network card. Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in four hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS™ ECO Mode allows the UPS to reach up to 96% efficiency to reduce power consumption and thermal dissipation.
This UPS can use the BP240V30ART3U or BP240VL3U01 extended battery module for more runtime. The OL6KRT comes with a three-year warranty (including batteries) and a ,300,000 connected equipment guarantee.
- Connected Equipment Guarantee: $300,000
- Environmental sensor: Optional
- Warranty: Three-Year Limited
- Fast Charge Technology: Yes
- Smart Battery Management: Yes
- Remote management: Yes, RMCARD205 pre-installed
- Energy saving: ECO Mode Efficiency up to 96%
- Management software: PowerPanel® Business Edition
- Data line surge protection: Yes, 1 x RJ-45 In/Out
- Communication ports: USB, Serial, Ethernet, Relay, EPO
- Outlets: 4
- Outlet types: 2 x NEMA L6-20R, 2 x NEMA L6-30R
- Plug type & cord: NEMA L6-30P, 10 ft cord
- Runtime (half/full): 15 minutes / 5.4 minutes
- Output: 200, 208, 220, 230, 240 V ±2% User Configurable
- Waveform: Sine Wave
- Topology: Double-Conversion
- Output Power Factor (PF): 0.9
- Capacity: 6,000 VA / 5,400 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Crest Factor | 3:1 |
| Replaceable Battery | Yes |
| Input Frequency | 70 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | ECO Mode Efficiency up to 96% |
| EPO Port | Yes |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Plug/Connector Type | NEMA L6-30P |
| Battery Capacity | 7000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 20 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage Range | 120 V AC - 139 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Circuit Breaker Current Rating | 30 A |
| Load Capacity (Watt) | 5400 W |
| Load Capacity (VA) | 6000 VA |
| Input Power Factor | 0.99 |
| Output Frequency | 50.25 Hz |
| Output Power Factor | 0.9 |
| Backup/Run Time (Full Load) | 5.40 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Networking & Connectivity | |
|---|---|
| Network Management | Dry Contact |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| General Features | |
|---|---|
| Alarm | Battery Mode |
| Protection Type | Short Circuit |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 560.35 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 65 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
