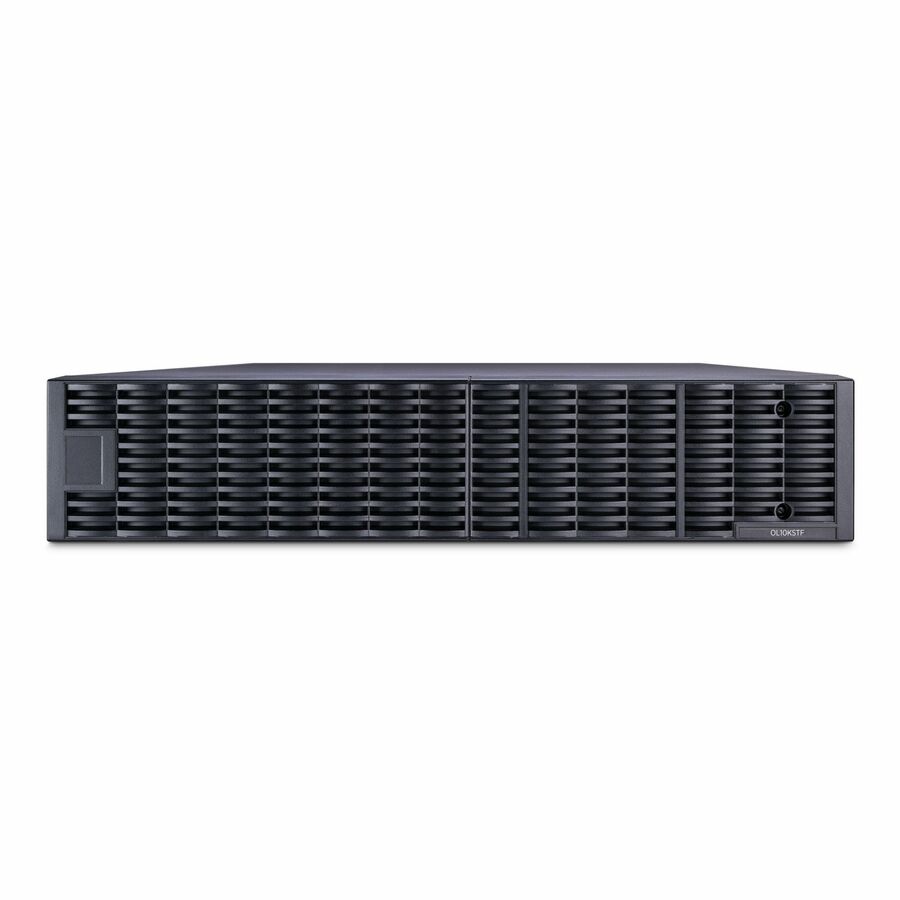

The CyberPower Smart App Online OL10KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.
The OL10KSTF has a capacity of 10,000 VA / 10,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
The included 3-foot power cable kit (6AWGHW3FT) connects the OL10KSTF to input power. Over temperature protection safeguards your OL10KSTF from damage if the internal heat exceeds safe operating parameters.
A Three-Year Warranty ensures that this step-down transformer has passed our highest quality standards in design, assembly, material or workmanship.
- Warranty: Three year
- Overload protection: Output circuit breakers
- Over temperature protection: Yes
- Form factor: 2U Rack/Tower convertible
- Outlets: (6) NEMA 5-20R, (1) Hardwire Terminal Block
- Plug type & cord: 3 ft 6AWGHW3FT hardwire power cable kit
- Power conversion: 208 V from utility, UPS, or generator to 120 V output
- Step-down transformer: 10,000 VA / 10,000 W
- Output: 120 V, 208 V, 50/60 Hz
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Output Receptacle Detail | 1 x Terminal Block |
| Input Receptacle Type | Hardwired |
| Output Receptacle Type | Terminal Block |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating | 10000 VA |
| Maximum Line Current | 50 A |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack Mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Cables | |
|---|---|
| Cord Length | 36" |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Environmentally Friendly | Yes |
