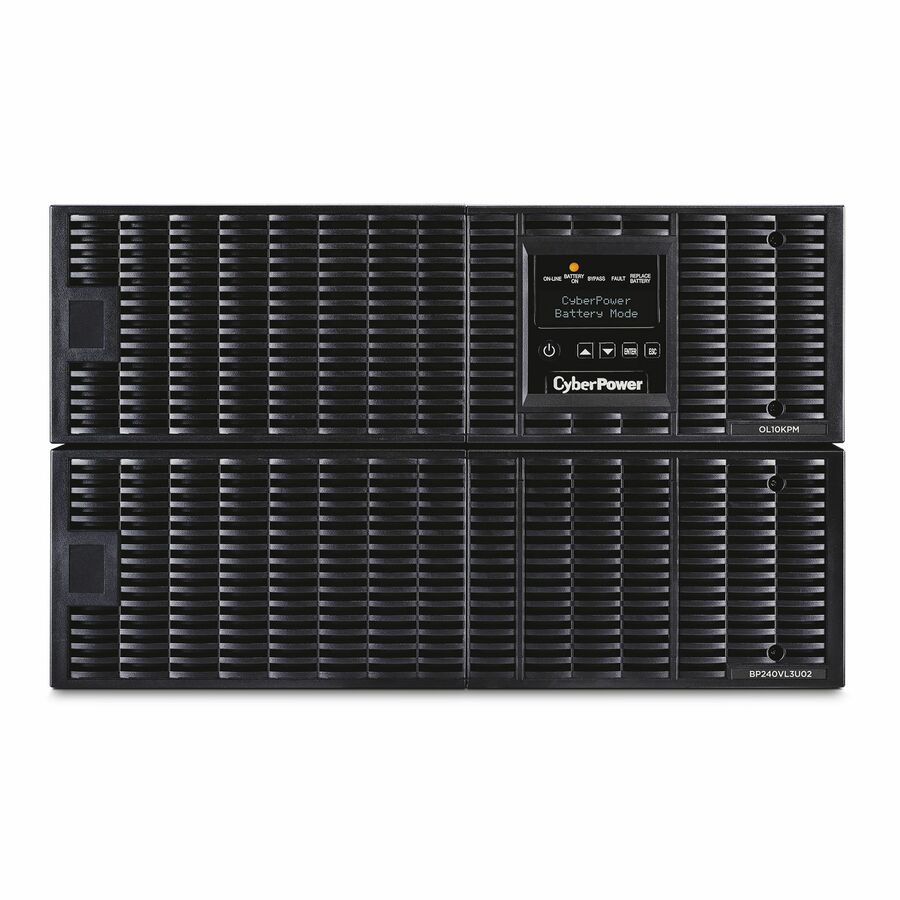

The CyberPower Smart App Online OL10KRT is a 6U rack/tower double-conversion UPS. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. The OL10KRT is generator compatible and delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected.
The OL10KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable), and it has a RMCARD205 pre-installed network card. Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in five hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS™ ECO Mode allows the UPS to reach up to 97% efficiency to reduce power consumption and thermal dissipation.
This UPS can use the BP240VL3U01 extended battery module for more runtime. The OL10KRT comes with a three-year warranty (including batteries) and a ,300,000 connected equipment guarantee.
- Warranty: Three-Year Limited
- Connected Equipment Guarantee: $300,000
- Environmental sensor: Optional
- Fast Charge Technology: Yes
- Smart Battery Management: Yes
- Energy Saving: ECO Mode Efficiency up to 97%
- Remote management: Yes, RMCARD205 pre-installed
- Management software: PowerPanel® Business Edition
- Data line surge protection: Yes, 1 x RJ-45 In/Out
- Communication ports: USB, Serial, Ethernet, Relay, EPO
- Outlets: 4
- Outlet types: 3 � NEMA L6-30R, 1 � Hardwire Terminal Block
- Runtime (half/full): 10 minutes / 3.6 minutes
- Plug type: Hardwire
- Output: 200, 208, 220, 230, 240 V ±2% User Configurable
- Output Power Factor (PF): 1
- Topology: Double-Conversion
- Waveform: Sine Wave
- Capacity: 10,000 VA / 10,000 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Input Frequency | 70 Hz |
| EMI/RFI Noise Filter | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | ECO Mode Efficiency >97% |
| EPO Port | Yes |
| Receptacle Detail | 3 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Plug/Connector Type | Hardwired |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 20 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 5 Hour |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Efficiency | 97% |
| Circuit Breaker Current Rating | 63 A |
| Load Capacity (Watt) | 10 kW |
| Load Capacity (VA) | 10000 VA |
| Input Power Factor | 0.99 |
| Output Frequency | 50.25 Hz |
| Output Power Factor | 1 |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Networking & Connectivity | |
|---|---|
| Network Management | Dry Contact |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| General Features | |
|---|---|
| Alarm | Battery Mode |
| Protection Type | Short Circuit |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 941.05 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 65 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
