CyberPower CPS1220RM 120 - 120 VAC 20A Basic

$ 128.49 $ 128.49
$ 128.49

$ 128.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • Number of Cord/Cable
  • Parts Warranty/Labor
  • PDU Type
  • Phase
  • Circuit Breaker
  • Protection Type
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Form Factor
  • Product Color
  • Color Family
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Rating (VA)
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

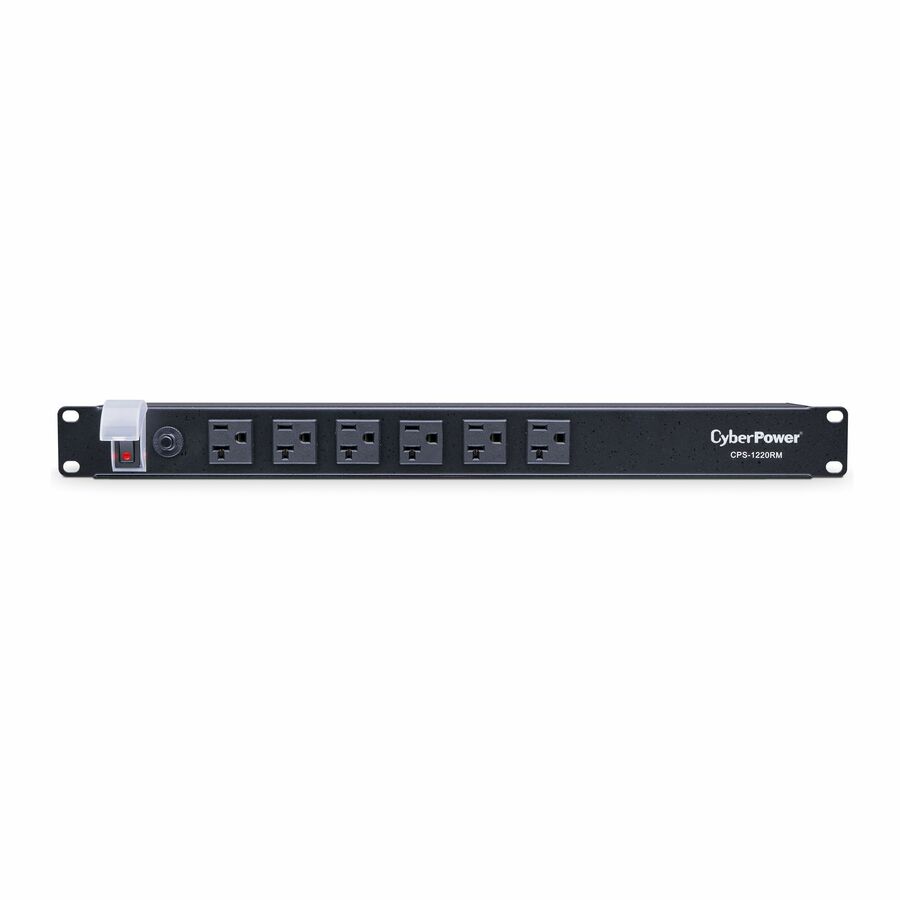

The CyberPower CPS1220RM, a 12-outlet (6 front, 6 rear) rackmount power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1220RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is ETL/RoHS certified. A three-year warranty covers the CPS1220RM for three years for as long as you own the product.

More from the Manufacturer

  • Warranty: 3 year
  • Dimensions (in.): 17.25W x 1.75H x 4.75D
  • Cord length (ft.): 15
  • Size: 1U Rackmount
  • Frequency: 60Hz
  • Plug type: NEMA 5-20P
  • Outlets: 12 NEMA 5-20R
  • Phase: Single
  • Volts: 100 - 125 V
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Basic
Phase Single Phase
Circuit Breaker Yes
Receptacle Detail 12 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Type NEMA 5-20P
Locking Receptacles Cord Retention Tray
Input Voltage Range 100 V AC - 125 V AC
Input Voltage 120 V AC
Output Voltage 120 V AC
Input Current 20 A
Power Rating (VA) 1800 VA
Size / Dimensions
Form Factor Rack
Mount Type Rack-mountable
Mounting Orientation Horizontal
Rack Height 1U
General Features
Protection Type Short Circuit Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 15 ft
Compliance & Certification
Maximum Operating Temperature 104°F (40°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 113°F (45°C)
Minimum Storage Temperature 5°F (-15°C)
Environmentally Friendly Yes
UL Listed Yes
Warranty & Support
Parts Warranty/Labor 3 Year Parts & Labor
Packaging & Origin
Number of Cord/Cable 1
