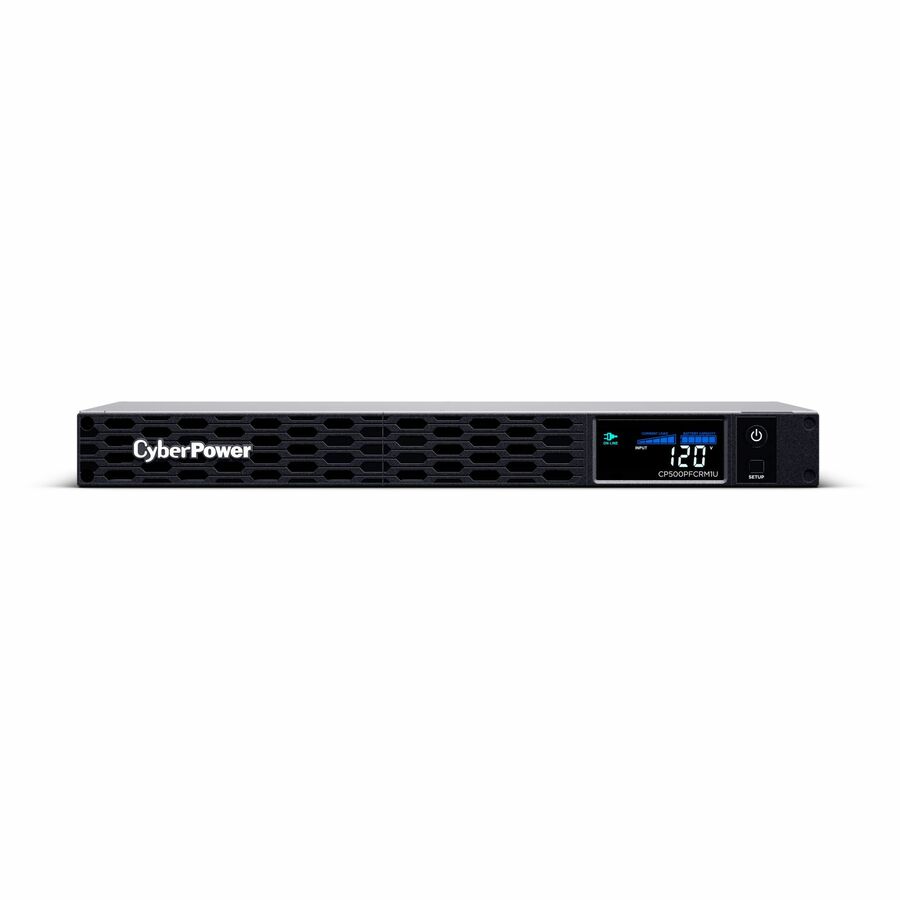

The CP500PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
The CP500PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 9.04 inches in depth, the CP500PFCRM1U fits comfortably in short-depth rack installations where space is at a premium.
The CP500PFCRM1U comes with a three-year warranty (including coverage of batteries) and a ,300,000 Connected Equipment Guarantee.
- Capacity: 500VA / 300W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120Vac ± 5%
- Runtime (half/full): 10.5 minutes / 2 minutes
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlets: 6 (2 surge, 4 surge + battery backup)
- Outlet types: 6 � NEMA 5-15R
- Communication: USB, SNMP
- Data line protection: Network RJ45
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $300,000
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 4 |
| Replaceable Battery | Yes |
| Input Frequency | 60 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Circuit Breaker | Yes |
| Surge Suppression | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 2 |
| Number of Battery & Surge Outlets | 4 |
| Battery Capacity | 7000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 88 V AC - 144 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 300 W |
| Load Capacity (VA) | 500 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.6 |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 10.50 Minute |
| Transfer Time | 8 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1150 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
