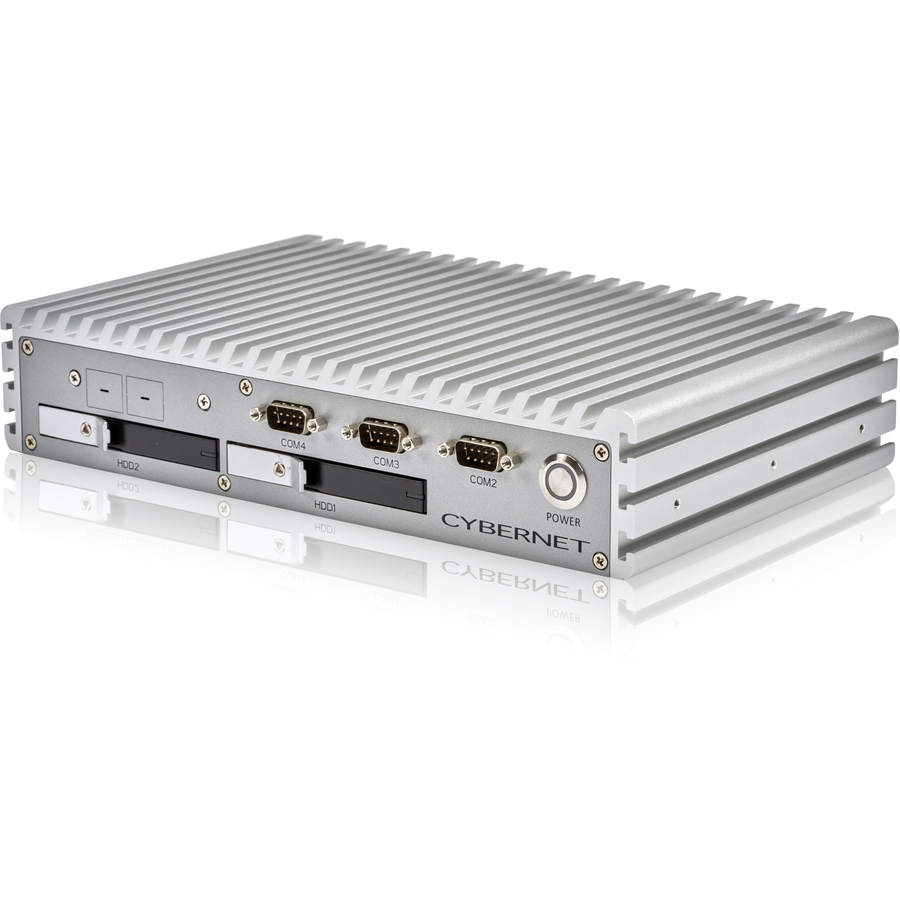

The iPC R2is is one of our smallest form factor rugged mini PCs. Measuring at a svelte 10.74" L x 6.65" W x 2.16" D and weighing only 5 lbs., this unit is a testament to the statement that good things come in small packages. Powered by an 8th generation Intel i5 or i7 processor, this embedded PC offers up to 32GB of RAM and dual SSDs that can hold up to 2TB of data.
The iPC R2is isn't just powerful, it is built tough too. Industrial grade components mean it can withstand extreme temperatures (-25°C to 70°C) and humidity (10%-95% non-condensing). It has also been independently tested to be IEC60608-2-27 shock and vibration proof.
The use of computers to keep operations flowing has become an absolute must, regardless of the environment. A lot of industrial environments aren't climate controlled or may need to be kept at extreme cold or hot temperatures, depending on the manufacturing process.
The iPC R2is is engineered to withstand extreme temperature and humidity conditions. Engineered with industrial grade components and a fanless design, internal components won't break down simply because the environment was too tough. That is why Cybernet's industrial computers have a less than 2% failure rate.
- IEC60068-2-27 certification for shock and vibration
- Terminal Blocks for Remote On/Off Functionality
- Rated For Extreme Temperatures and High Humidity
- 8th Generation Intel Core i5/i7 Processor
- Custom Mounting Bracket for Wall & VESA Mount Solutions
- Provides both modern and legacy ports for full connectivity
| Brand | |
|---|---|
| Brand | Cybernet Manufacturing |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Model | i5-8365UE |
| Processor Generation | 8th Gen |
| Processor Speed | 1.60 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD 620 Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 1.0 |
| Maximum Memory Supported | 32 GB |
| Storage | |
|---|---|
| Total Solid State Drive Capacity | 128 GB |
| Optical Drive Type | No |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.1 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Number Of Ethernet Ports | 2 |
| Software & Licensing | |
|---|---|
| Operating System Platform | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini PC |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Manufacturer | Cybernet Manufacturing, Inc |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 6.0 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
