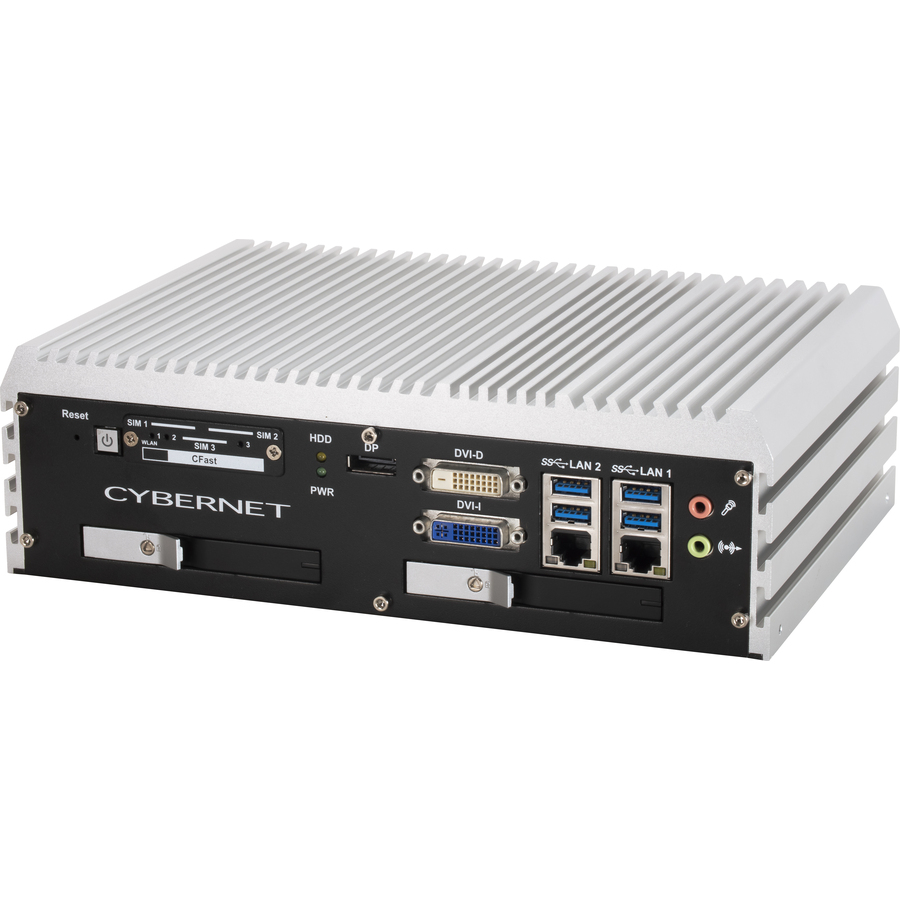

The IPC-E1S mini rugged computer is one of the most versatile on the market. In addition to multiple mounting options, you can customize the unit's specs to meet nearly any application.
Socketed Intel 6th Generation i5 or i7 processor
Expandable up to 32GB of RAM
Windows 7, 8, 10, IoT, or Linux perating systems
This in vehicle computer also supports RS-232 legacy ports allowing it to connect to both old and new equipment.
The iPC E1s comes with 4 PoE ports capable of providing up to 25 Watts of power per port. This is perfect for powering connecting IP cameras or other peripheral devices for remote fleet management.
Integrated ignition control for cold crank and battery drain prevention support, 4G/3G LTE connectivity with GPS, combined with IEC60068-2-27 certification for shock and vibration make this an ideal in vehicle computer.
Locking removable drives makes the iPC E1s perfect for use in working environments where drives need to be removed. Locks prevent the drives from being accidentally removed during critical operations, as well as preventing incidents of theft.
The removable drive allows you to secure the drive in a safe or other secure areas when not in use, safeguarding the information.
The iPC E1s' four PoE ports can be used to connect up to 4 IP cameras, making it great for video surveillance applications. The powerful processor and solid state drive can record and store months of high definition video, perfect for any secure area.
- 4 PoE ports capable of providing up to 25 Watts of power per port
- Dual locking removable drive bays allows you to secure the drive in a safe or other secure areas when not in use
- Integrated ignition control
- IEC60068-2-27 certification for shock and vibration
- Custom mounting bracket for wall, VESA, Din Rail or Rack Mount solutions
- 8th Generation Intel Core i5/i7 Processor
| Brand | |
|---|---|
| Brand | Cybernet Manufacturing |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Model | i5-6500TE |
| Processor Generation | 6th Gen |
| Processor Speed | 2.30 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD 530 Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 2.0 |
| Maximum Memory Supported | 32 GB |
| Storage | |
|---|---|
| Total Solid State Drive Capacity | 128 GB |
| Optical Drive Type | No |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number Of Ethernet Ports | 6 |
| Software & Licensing | |
|---|---|
| Operating System Platform | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini PC |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Manufacturer | Cybernet Manufacturing, Inc |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 2 |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 6.0 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
