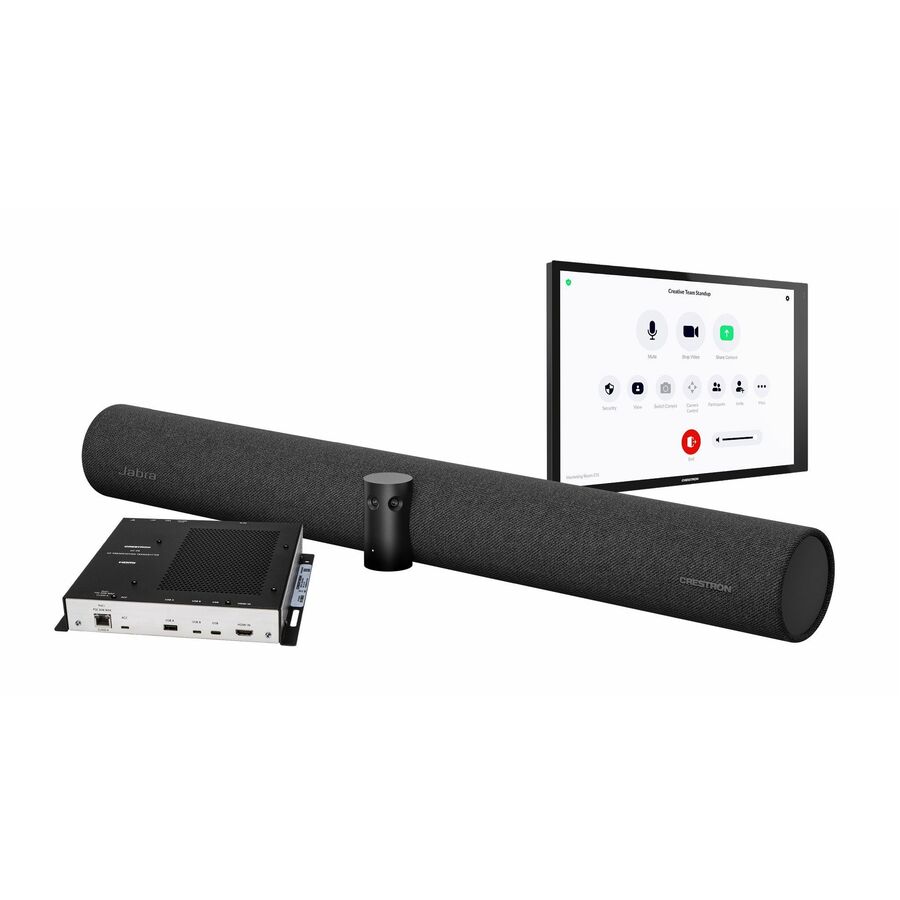

The UC-BX31-Z-WM Crestron Flex advanced wall mount conferencing system provides a small room video conference solution for use with Zoom Rooms® software. It supports up to three video displays1 (not included) and features a wall mount touch screen, Jabra® PanaCast® 50 video bar for Crestron Flex systems, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.
Native Zoom Rooms® Software Experience
The UC-BX31-Z-WM system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing
Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW-1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
Wall Mount Options
Using the bracket provided, the touch screen is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
High-Definition Video Conferencing with Impressive Audio
High-quality speakers and microphones deliver exceptional full-duplex performance from the Jabra PanaCast 50 video bar for Crestron Flex systems (UC-SB-P50). Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC-PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected.
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility
- With unmatched performance and clarity, this video conference equipment lets you conduct better video conference meetings
- 30 fps frame rate refresh swiftly and dodge human reception time to decrease the chances of motion blur.
- Gigabit Ethernet enables higher data transfer capacity which results in a better conference calling
- Simply plug in RJ-45 port to connect the conference equipment on the network
- 100/1000Base-T technology for high-speed connectivity
| Brand | |
|---|---|
| Brand | Crestron Electronics |
| GPU / Graphics | |
|---|---|
| Graphics Modes (Live) | 4K |
| Power & Battery | |
|---|---|
| Power Source | PoE+ |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Network Technology | 100Base-TX |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution (Liv | 3840 x 2160 |
| Total Number of Cameras | 3 |
| Camera Resolution | 13 Megapixel |
| Maximum Frame Rate | 30 fps |
| Field Of View (FOV) Angle | 180° |
| Software & Licensing | |
|---|---|
| Unified Communications Platfo | Zoom |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface Mountable |
| General Features | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Miscellaneous | |
|---|---|
| Room Size | Small |
