The UC-B31-T-WM Crestron Flex advanced wall mount conferencing system provides a small room video conference solution for use with Zoom Rooms software. It supports single or dual video displays(not included) and features a wall mount touch screen, Jabra PanaCast 50 video bar, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.
Native Microsoft Teams Rooms Experience
The UC-B31-T-WM system brings the full Zoom Rooms UC experience to any meeting space in an enterprise or SMB facility.
Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron wall mount touch screen (TSW-1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the wall mount touch screen to the UC Bracket Assembly.
Wall Mount Options
Using the bracket provided, the touch screen is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
High-Definition Video Conferencing with Impressive Audio

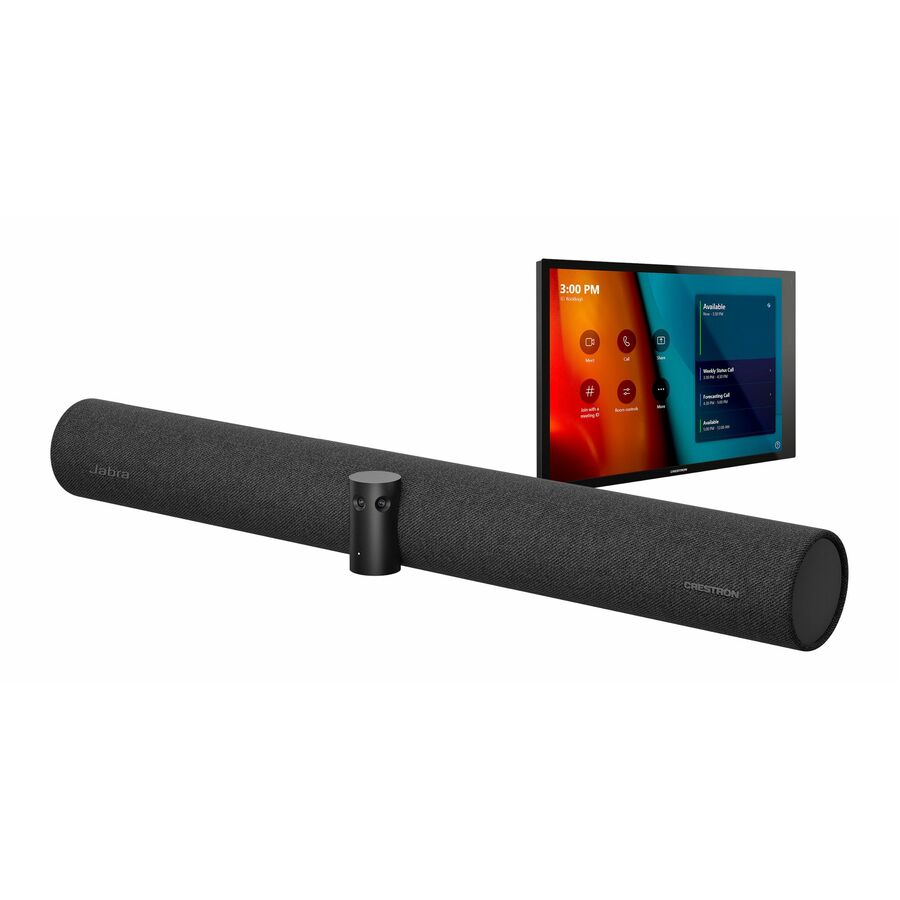

High-quality speakers and microphones deliver exceptional full-duplex performance from the Jabra PanaCast 50 intelligent video bar (UC-SB-P50). Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view.
Crestron Control System Integration
The UC-B31-T-WM integrates with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.
- atr:111114907# work proficiently to give you promising video conferencing experience
- Featuring Gigabit Ethernet port for ultra-high quality communication
- With the 100Base-TX technology, get up to 100Mbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | Crestron Electronics |
| Power & Battery | |
|---|---|
| Power Source | AC Adapter |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Network Technology | 100/1000Base-T |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI In | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution (Liv | 3840 x 1080 |
| Total Number of Cameras | 3 |
| Camera Resolution | 13 Megapixel |
| Maximum Frame Rate | 30 fps |
| Software & Licensing | |
|---|---|
| Unified Communications Platfo | Microsoft Teams |
| Size / Dimensions | |
|---|---|
| Form Factor | Display Mount |
| General Features | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Miscellaneous | |
|---|---|
| Room Size | Small |
