Crestron DM Essentials 4K60 4:4:4 Receiver for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black

$ 359.99 $ 359.99
$ 359.99

$ 359.99 / Units
  • Brand
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Connectivity Technology
  • HDMI Out
  • Number of HDMI Outputs
  • Network (RJ-45)
  • Twisted Pair Cable Standard
  • Remote (IR) Input
  • Remote (IR) Output
  • Form Factor
  • Product Color
  • Color Family
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Maximum Video Resolution
  • Media Type Supported
  • Graphics Modes
  • Maximum Operating Distance
  • Supported Video Modes
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

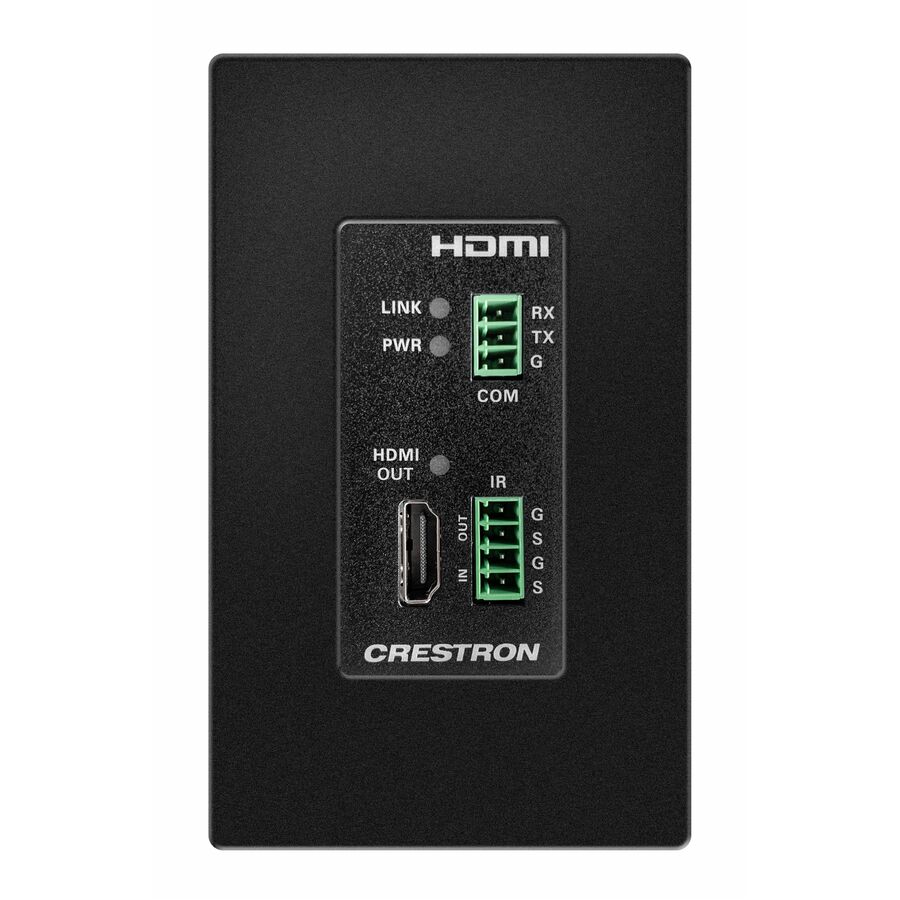

The HD-RXC-4KZ-101-1G is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM-CBL-8GorDM-CBL-ULTRA sold separately) is needed to connect the HD-RXC-4KZ-101-1G to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

The HD-RXC-4KZ-101-1G is available in black (model HD-RXC-4KZ-101-1G-B).

Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher

The DM Essentials input port of the HD-RXC-4KZ-101-1G must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are theHD-TXC-4KZ-101andHD-TXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402, andHD-PS401.


The HD-RXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-RXC-4KZ-101-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-RXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

One-Gang Wall Plate Design

The HD-RXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RXC-4KZ-101-1G can receive power from the remote DM Essentials transmitter (surface mountable only) or DMPS Essentials switcher.

Key Features

  • Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
  • Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
  • DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
  • 1080p supported video mode for maximum viewing feasibility and adaptability
  • 4096 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
  • HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
  • Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
  • The HD-RXC-4KZ-101-1G-B video extender receiver provides plenty of freedom with wired connectivity
  • 229.66 ft maximum operating distance to allow efficient coverage and maximum usability
  • WUXGA graphics mode provides optimal video output with remarkable picture clarity
  • Wall mountable video extender receiver is Ideal for permanent placement with added space efficiency
Brand
Brand Crestron Electronics
GPU / Graphics
Graphics Modes QWXGA
Networking & Connectivity
Connectivity Technology Wired
HDMI Ports
HDMI Out Yes
Number of HDMI Outputs 1
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 4096 x 2160
Size / Dimensions
Form Factor Gang Box Mount
Receiver Width 1.72"
Receiver Weight (Approximate) 5.40 oz
Receiver Height 4.12"
Receiver Depth 2.19"
General Features
Maximum Operating Distance 229.66 ft
Supported Video Modes 1080i
Manufacturer Crestron Electronics, Inc
Misc Ports
Remote (IR) Input 2
Remote (IR) Output 2
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Twisted Pair Cable Standard Category 5e
