CradlePoint Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router

796.21 796.21
796.21

796.21 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Broadband Transmission Techno
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Cellular Data Connectivity Te
  • Width
  • Number of Broadband (RJ-45) P
  • High Availability Supported
  • Standard Memory
  • Flash Memory Capacity
  • Wireless LAN Standard
  • Wi-Fi Generation
  • Cellular Generation
  • Cellular Network Supported
  • MU-MIMO Technology
  • ISM Band
  • ISM Maximum Frequency
  • UNII Band
  • UNII Maximum Frequency
  • Multi-SIM Supported
  • Number of SIM Card Supported
  • SIM Size Supported
  • USB
  • USB Standard
  • Total Number of Network Ports
  • Form Factor
  • Product Material
  • Processor Core
  • Ethernet Technology
  • Network Band
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Manufacturer
  • Product Type
  • Product Series
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

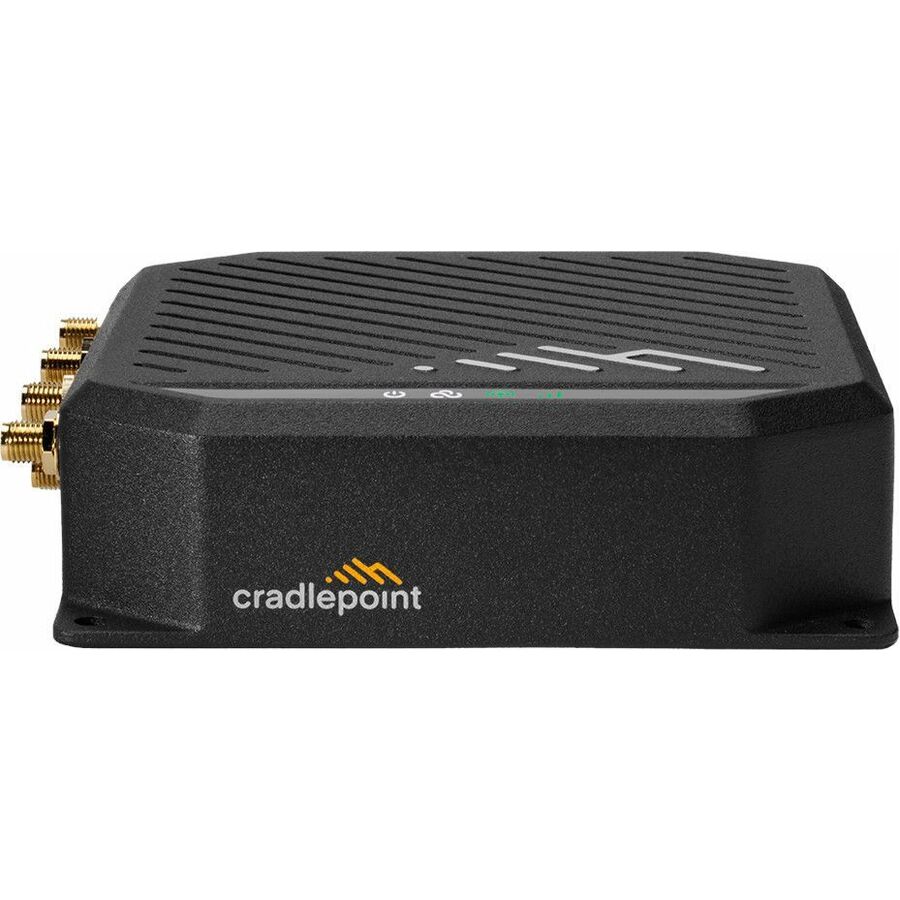

The Cradlepoint S700 Series Semi-Ruggedized Router for IoT networks is a semi-ruggedized, cloud-managed LTE router, built for light industrial, IoT, and portable applications where security is a foundational requirement. Offering connectivity through LTE plus wired and Wi-Fi options, the S700 accommodates a variety of use cases in high-availability, portable, or fixed uses. The S700 Series is available with IoT NetCloud Service Plans, which provide features optimized for each unique deployment.

Semi-Ruggedized IoT Solution

When coupled with the NetCloud IoT service plan, the S700 router provides a compact, semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. With an IP30-rated aluminum housing built to withstand vibration and temperature extremes and designed for DIN rail mounting, the S700 is ideal for use in light industrial applications such as oil and gas monitoring or in portable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.

Advanced, Cloud-Managed IoT Solution

? For organizations requiring robust connectivity for IoT networks - with installed routers numbering from hundreds to many thousands - Cradlepoint's NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Cradlepoint's NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.

  • Define policies through centralized, cloud-based management for easy deployment at scale
  • Gain fast, reliable connectivity with an embedded Cat 4 modem with dual SIM suppor.t
  • Expand working radius and IoT connectivity with dual-band, concurrent Wi-Fi 6
  • Provide a semi-ruggedized, portable solution capable of enduring harsh temperatures and vibration
  • Utilize Configurable GPIO ports and NetCloud Integrations for IoT applications
  • Customize and extend NetCloud Service functionality with NetCloud SDK and API
  • Provide Active GNSS/GPS for asset tracking and mobile IoT use cases
Brand
Brand ERICSSON
CPU / Processor
Processor Core Dual-core (2 Core)
Memory / RAM
Standard Memory 512 MB
Storage
Flash Memory Capacity 8 GB
Networking & Connectivity
Broadband Transmission Techno Cellular
Cellular Data Connectivity Te WCDMA
Wi-Fi Generation Wi-Fi 6
Cellular Generation 4G
Cellular Network Supported LTE 1900
MU-MIMO Technology Yes
ISM Band Yes
ISM Maximum Frequency 2.40 GHz
UNII Band Yes
UNII Maximum Frequency 5 GHz
Network Band Dual Band
USB Ports
USB Yes
USB Standard USB 2.0 Type A
Ethernet Port
Number of Broadband (RJ-45) P 2
Total Number of Network Ports 2
Size / Dimensions
Form Factor Desktop
General Features
High Availability Supported Yes
Manufacturer ERICSSON
Telephony
Multi-SIM Supported Yes
Number of SIM Card Supported 2
SIM Size Supported Nano
Compliance & Certification
Environmentally Friendly Yes
