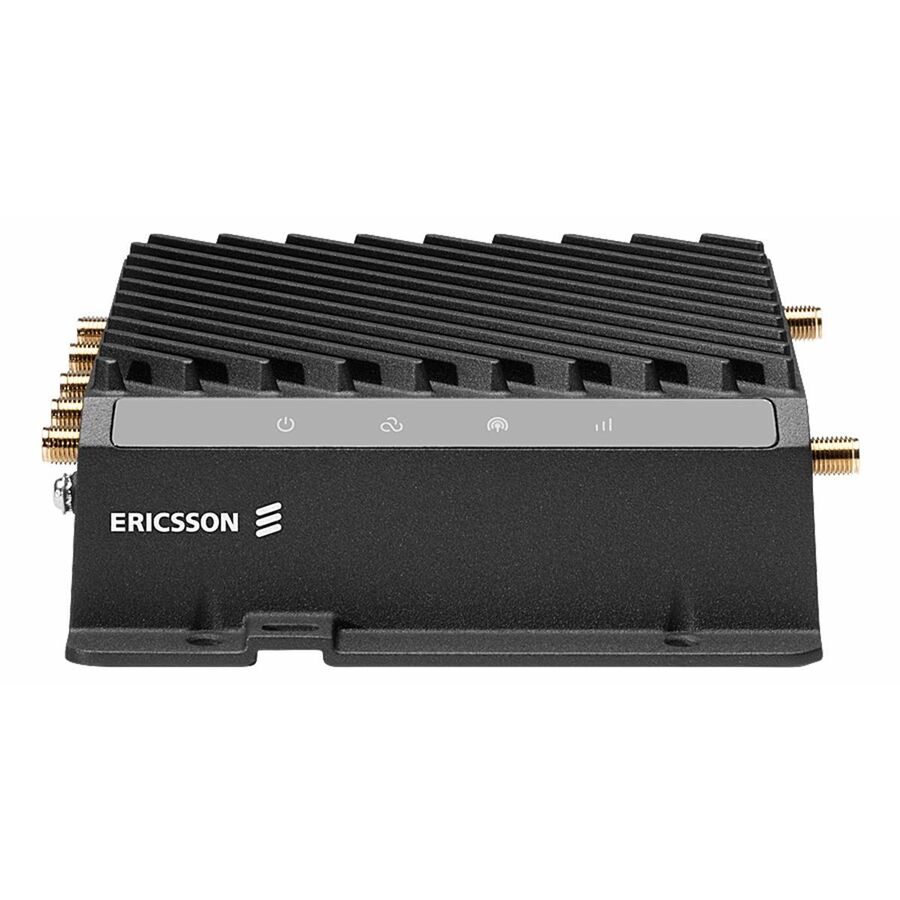

CradlePoint R980-5GD Wi-Fi 6 IEEE 802.11k/v/ax 2 SIM Cellular, Ethernet Modem/Wireless Router - TAA Compliant

2,482.78 2,482.78
2,482.78

2,482.78 / Units
  • Brand
  • Processor Type
  • Depth
  • Total Wireless Transmission S
  • Weight (Approximate)
  • Broadband Transmission Techno
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Cellular Data Connectivity Te
  • Width
  • Number of Broadband (RJ-45) P
  • Maximum Upload Speed
  • Standard Memory
  • Flash Memory Capacity
  • Wireless LAN Standard
  • Wi-Fi Generation
  • Cellular Generation
  • Cellular Network Supported
  • MU-MIMO Technology
  • ISM Band
  • ISM Maximum Frequency
  • UNII Band
  • UNII Maximum Frequency
  • Multi-SIM Supported
  • Number of SIM Card Supported
  • SIM Size Supported
  • VPN Supported
  • USB
  • USB Standard
  • Total Number of Network Ports
  • Form Factor
  • Processor Core
  • Ethernet Technology
  • Network Band
  • Encryption Standard
  • TAA Compliant
  • Environmental Compliance
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

The Ericsson Cradlepoint R980 is a ruggedized, secure appliance and router that broadens access to the increased speed and performance of 5G to support advanced applications and critical communications. Designed for the 5G future, it is 5G network slicing ready with the deployment flexibility of eSIMs which allow carrier switching without changing physical SIMs. (eSIM will be functional with future NetCloud releases.) It is a ruggedized 5G networking platform able to withstand wide temperature extremes, harsh environments, and hazardous locations while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security. The R980 is available with either Mobile or Ruggedized IoT NetCloud service plans, providing features optimized for the needs of the differing deployments. The R980 also supports NetCloud Exchange and SASE services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.

High-Performance Vehicle Connectivity

The Ericsson Cradlepoint R980 router with an Ericsson NetCloud Mobile service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Mobile service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality such as location tracking and cellular coverage maps. The R980 with SD-WAN provides resilient in-vehicle connections by optimizing traffic across LTE, 5G, 5G stand-alone network slices, satellite, and Wi-Fi as WAN.

Ruggedized IoT Solution

When combined with an Ericsson NetCloud Ruggedized IoT service plan, the R980 provides a versatile, ruggedized 5G router solution for connecting and protecting IoT devices at scale. It can be deployed in a wide range of environmentally harsh IoT use cases such as oil and gas, utility, and smart city infrastructure, in addition to next-gen kiosks, and video surveillance, deployments. The ruggedized design and CBRS band support make it ideal for private networks. In addition, the solution is highly extensible with APIs, SDKs, and integrations into IoT platforms, and the generous memory supports onboard edge containers.

  • Gain fast, reliable connectivity with 5G NR/Cat 19 LTE providing fast upload for video and data
  • Prioritize access to public safety networks for reliable, secure connectivity
  • Use advanced GNSS/GPS functionality for location tracking and cellular coverage maps
  • Enable zero trust security and SD-WAN with 5G SASE
  • Extend your deployment and enable customized solutions with powerful edge compute capabilities, including containers, connectors, SDKs, and API support
  • Take advantage of 5G network slices to segment and isolate applications or devices, prioritize traffic, and have greater control over wireless network services
  • Change carriers over the air quickly and easily with built-in eSIM capability (Will be functional with future NetCloud OS releases.)
Brand
Brand ERICSSON
CPU / Processor
Processor Type ARM8
Processor Core Dual-core (2 Core)
Memory / RAM
Standard Memory 921 MB
Storage
Flash Memory Capacity 8 GB
Networking & Connectivity
Total Wireless Transmission S 227.07 MB/s
Broadband Transmission Techno Ethernet
Cellular Data Connectivity Te LTE Cat 19
Maximum Upload Speed 68.75 MB/s
Wi-Fi Generation Wi-Fi 6
Cellular Generation 5G
Cellular Network Supported LTE 5200
MU-MIMO Technology Yes
ISM Band Yes
ISM Maximum Frequency 2.40 GHz
UNII Band Yes
UNII Maximum Frequency 5 GHz
VPN Supported Yes
Network Band Dual Band
USB Ports
USB Yes
USB Standard USB 2.0 Type A
Ethernet Port
Number of Network (RJ-45) Por 1
Number of Broadband (RJ-45) P 1
Total Number of Network Ports 2
Size / Dimensions
Form Factor DIN Rail Mountable
Security
Encryption Standard WPA2-Personal
General Features
Manufacturer ERICSSON
Telephony
Multi-SIM Supported Yes
Number of SIM Card Supported 2
SIM Size Supported Nano/eSim
Compliance & Certification
TAA Compliant Yes
