CradlePoint R920-C7A Wi-Fi 6 IEEE 802.11k/v/ax 2 SIM Ethernet, Cellular Modem/Wireless Router

1,242.04 1,242.04
1,242.04

1,242.04 / Units
  • Brand
  • Depth
  • Total Wireless Transmission S
  • Weight (Approximate)
  • Broadband Transmission Techno
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Cellular Data Connectivity Te
  • Width
  • Number of Broadband (RJ-45) P
  • Maximum Upload Speed
  • Standard Memory
  • Flash Memory Capacity
  • Wireless LAN Standard
  • Wi-Fi Generation
  • Cellular Generation
  • Cellular Network Supported
  • MU-MIMO Technology
  • ISM Band
  • ISM Maximum Frequency
  • UNII Band
  • UNII Maximum Frequency
  • Multi-SIM Supported
  • Number of SIM Card Supported
  • SIM Size Supported
  • VPN Supported
  • USB
  • USB Standard
  • Total Number of Network Ports
  • Form Factor
  • Processor Core
  • Ethernet Technology
  • Network Band
  • Encryption Standard
  • Environmental Compliance
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

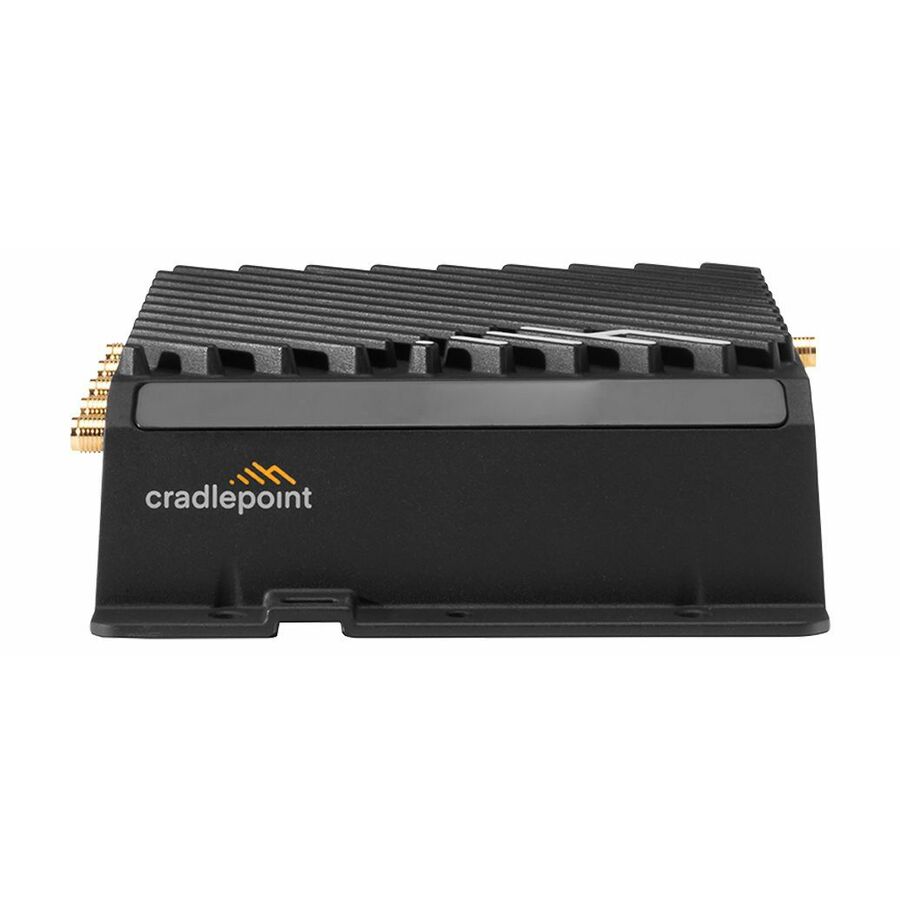

The Ericsson Cradlepoint R920 ruggedized router is a uniquely agile cellular networking solution that meets organizations' needsforflexible connectivity andproductstandardization for vehicles and IoT. The R920 is a ruggedized LTE networking platform available with either Mobile or Ruggedized IoT EricssonNetCloudService plans,providing features optimized for the needs of the differing deployments.

High-Performance Vehicle Connectivity

The Ericsson Cradlepoint R920 router with the Ericsson NetCloud Mobile Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. Combined with the Ericsson Cradlepoint RX20 managed accessory, the R920 can be field upgraded to include a second LTE or 5G modem. When coupled with the Advanced Mobile Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality such as location tracking and cellular coverage maps. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.

Ruggedized IoT Solution

When combined with the Ericsson NetCloud Ruggedized IoT Service plan, the R920 provides a versatile, ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. It can be deployed in a wide range of environmentally harsh IoT use cases such as kiosks, building automation, oil and gas, utility, and smart city infrastructure deployments. The ruggedized design and the CBRS band support make it ideal for private networks. In addition, the solution is highly extensible with APIs, SDKs, and integrations into IoT platforms, and the generous memory supports onboard edge containers. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.

  • Gain fast, reliable connectivity with Cat 7 LTE providing fast upload for video and data
  • Add a second LTE or 5G cellular modem for multi-link dependability
  • Deploy Wi-Fi 6 for the best possible connections
  • Prioritize access to public safety networks for reliable, secure connectivity
  • Enable unified edge security with application-aware multizone firewalls, IDS/IPS, and available FIPS 140-3 Level 1 Implementation Under Test
  • Extend your deployment and enable customized solutions with powerful edge compute capabilities, including containers, connectors, SDKs, and API support
  • Utilize the R920-C7A on private cellular networks with Band 48 CBRS
Brand
Brand ERICSSON
CPU / Processor
Processor Core Dual-core (2 Core)
Memory / RAM
Standard Memory 921 MB
Storage
Flash Memory Capacity 8 GB
Networking & Connectivity
Total Wireless Transmission S 226.56 MB/s
Broadband Transmission Techno Cellular
Cellular Data Connectivity Te LTE Cat 7
Maximum Upload Speed 18.75 MB/s
Wi-Fi Generation Wi-Fi 6
Cellular Generation 4G
Cellular Network Supported LTE 3700
MU-MIMO Technology Yes
ISM Band Yes
ISM Maximum Frequency 2.40 GHz
UNII Band Yes
UNII Maximum Frequency 5 GHz
VPN Supported Yes
Network Band Dual Band
USB Ports
USB Yes
USB Standard USB 2.0 Type A
Ethernet Port
Number of Network (RJ-45) Por 1
Number of Broadband (RJ-45) P 1
Total Number of Network Ports 2
Size / Dimensions
Form Factor DIN Rail Mountable
Security
Encryption Standard WPA3-ENT
General Features
Manufacturer ERICSSON
Telephony
Multi-SIM Supported Yes
Number of SIM Card Supported 2
SIM Size Supported Nano
