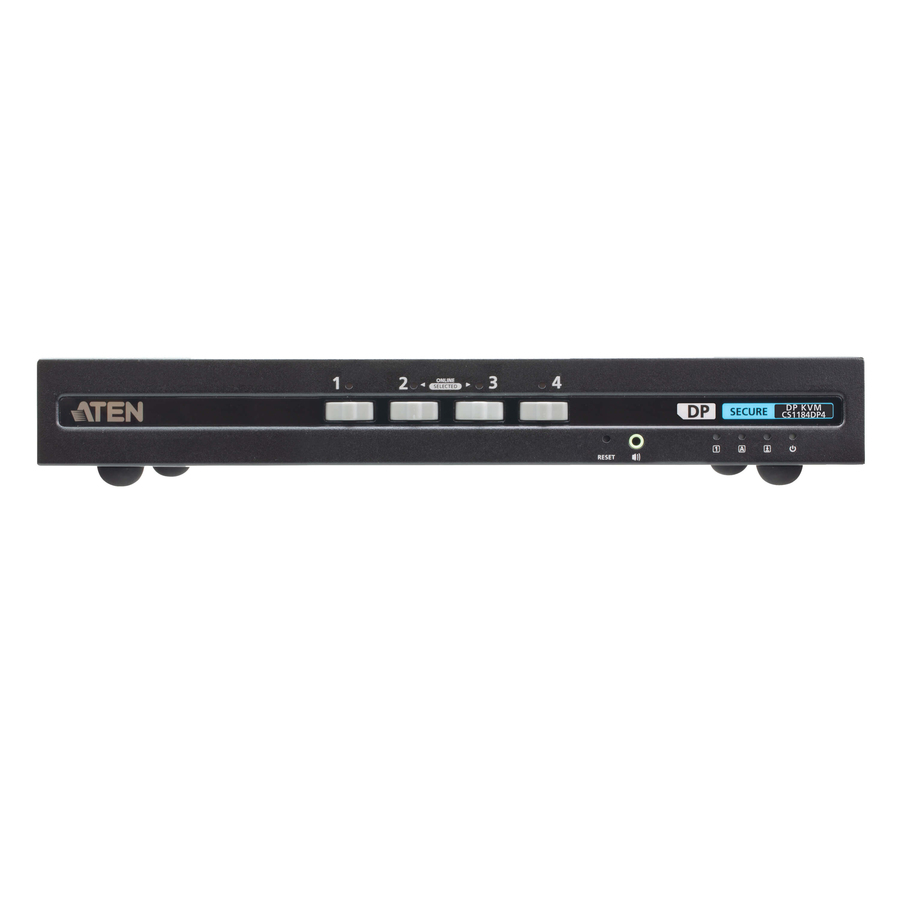

ATEN 4-Port USB DisplayPort Secure KVM Switch (PSD PP v4.0 Compliant)

538.59 538.59
538.59

538.59 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Local Users Support
  • USB
  • Number of USB Ports
  • DisplayPort
  • Number of DisplayPorts
  • Form Factor
  • Maximum Video Resolution
  • Input Voltage Range
  • Frequency
  • Packaged Quantity
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Manufacturer Website Address
  • Number of Computers Supported
  • Number of Local Users Supported
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS). With multi-layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

  • Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
  • Always-on chassis intrusion detection - renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
  • Configurable Device Filtration - supports administrative configuration to filter USB HID devices
  • Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
Brand
Brand ATEN Technology
Power & Battery
Input Voltage Range 100 - 240 VAC
USB Ports
USB Yes
Number of USB Ports 6
DisplayPort
DisplayPort Yes
Number of DisplayPorts 5
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Software & Licensing
Number of Local Users Support 1
Number of Local Users Supported 1
Size / Dimensions
Form Factor Desktop
General Features
Frequency 60 Hz
Manufacturer ATEN Technology, Inc
Number of Computers Supported 4
Miscellaneous
Product Name 4-Port USB DisplayPort Secure KVM Switch (PSD PP v4.0 Compliant)
ATEN 4-Port USB DisplayPort Secure KVM Switch (PSD PP v4.0 Compliant) - 4 Computer(s) - 1 Local User(s) - 3840 x 2160 - 50 Hz, 60 Hz - 6 x USB - 5 x DisplayPort - Desktop
