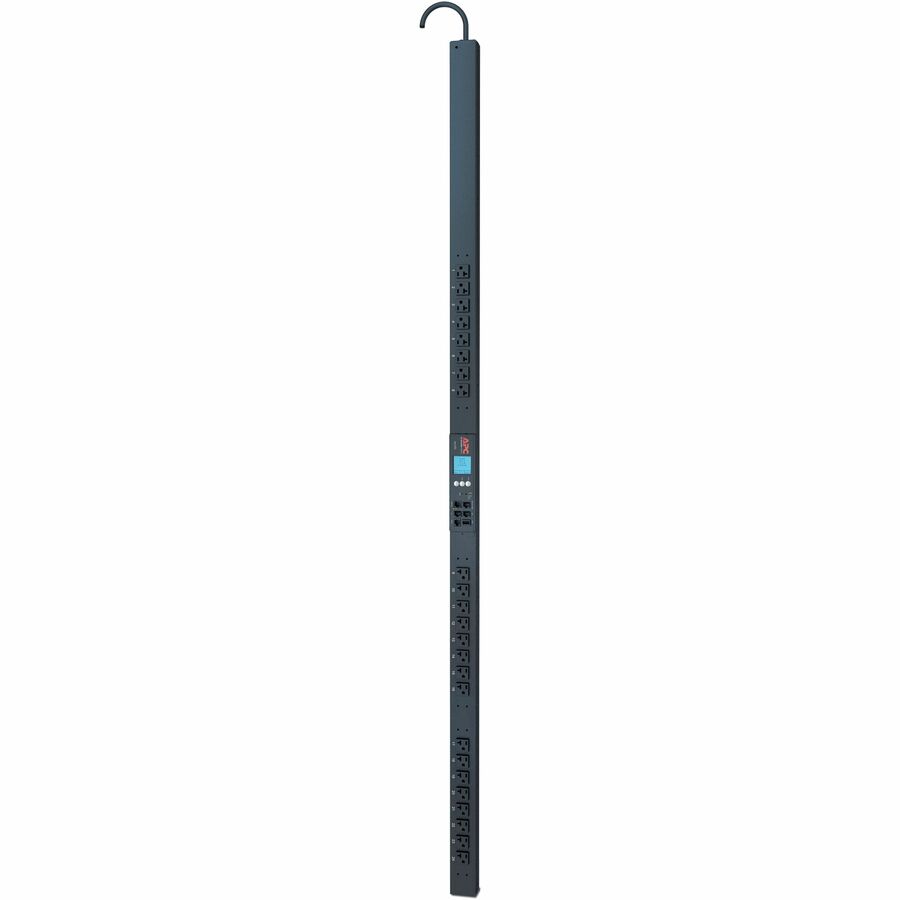

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
- Zero U toolless installation
- Stay on top of potential circuit overloads with user-defined alarms
- Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Ideal for Colocation, large data centers or distributed IT sites
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Receptacle Detail | 24 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Power Rating (VA) | 1920 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 9.51 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Lead Free | Yes |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Metered Rack PDU |
