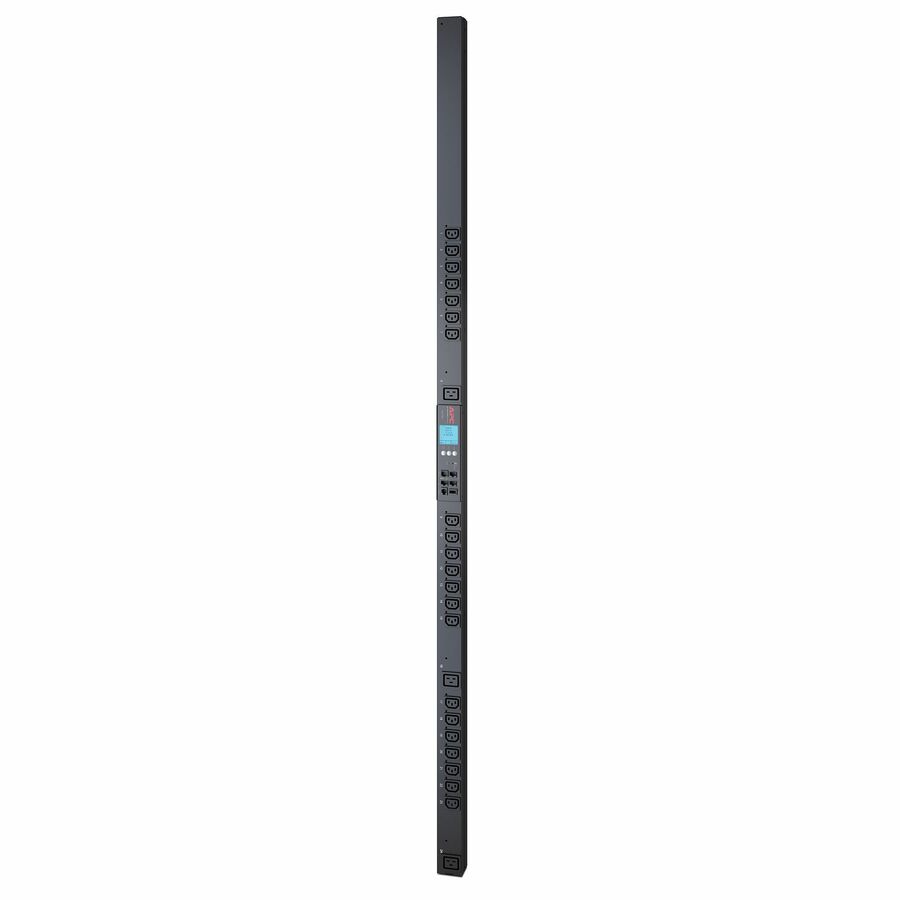

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
- User-defined alarms warn of potential circuit overloads before critical IT failures occur
- Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles
- Zero U toolless installation
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Ideal for Colocation, large data centers or distributed IT sites
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Metered-by-Outlet |
| Receptacle Detail | 3 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | NEMA L6-20P |
| Input Voltage Range | 200 V AC - 230 V AC |
| Input Voltage | 230 V |
| Output Voltage | 208 V AC |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 9.51 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Metered-by-Outlet Rack PDU |
