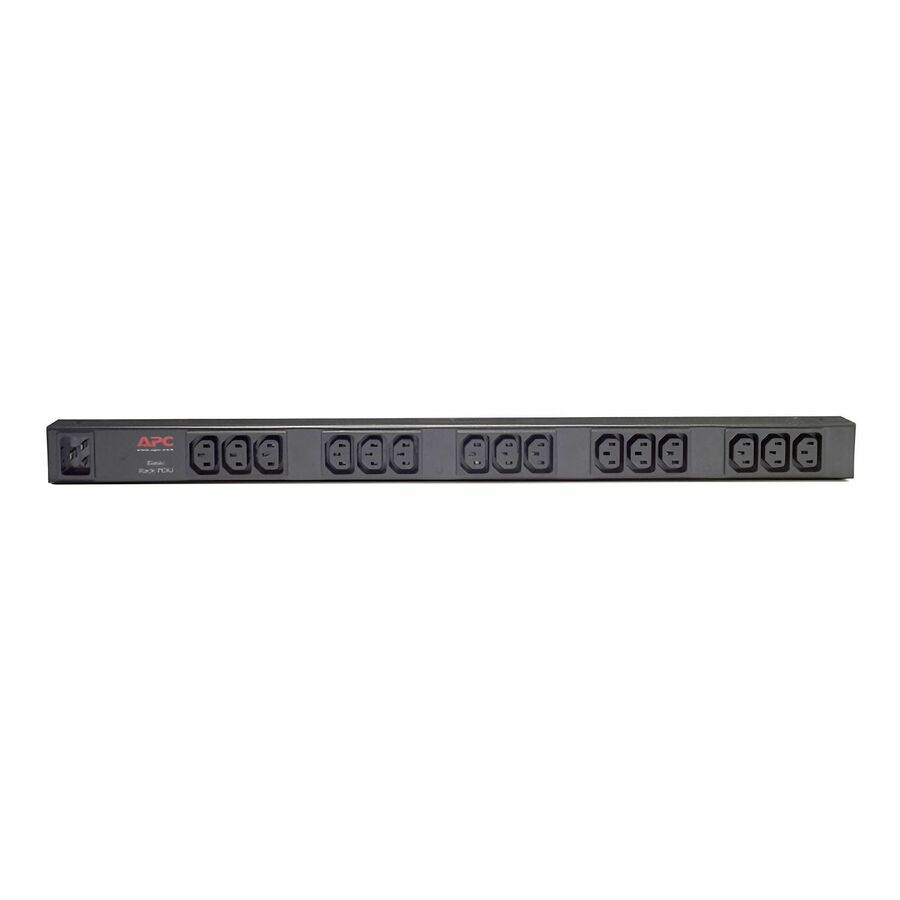

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 15 IEC 60320 C13 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
- Supports up to 16A, 208 and 230V power distribution
- Includes toolless mounting kit for quick setup
- Vertical mounting to save valuable rack space
- Features 15 C13 outlets for comprehensive power distribution
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Protected Output Re | 15 |
| PDU Type | Basic |
| Receptacle Detail | 15 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage Range | 120 V AC - 230 V AC |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Power Rating (VA) | 3680 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 7.87 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Basic Rack 3.68kVA PDU |
Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13 - Basic - IEC 60320 C20 - 15 x IEC 60320 C13 - 200 V, 208 V, 230 V - 3680 W - 8.20 ft Cord Length - 0U - Vertical - Rack-mountable
