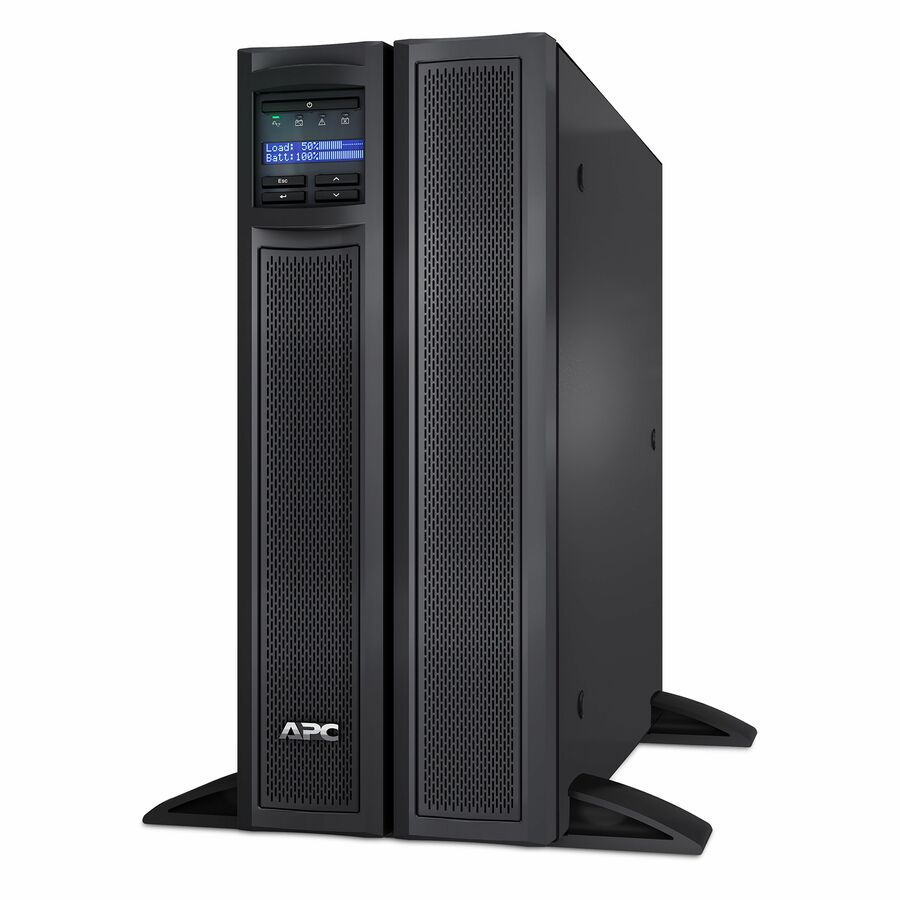

![APC Smart-UPS X, Line Interactive,3kVA,Rack/tower convertible 4U,208V,2x L6-20R NEMA+4x C13 IEC+2x C19 IEC, SmartSlot,Extended runtime,Short depth [TAA]](/web/image/product.product/839466/image_1024/APC%20Smart-UPS%20X%2C%20Line%20Interactive%2C3kVA%2CRack-tower%20convertible%204U%2C208V%2C2x%20L6-20R%20NEMA%2B4x%20C13%20IEC%2B2x%20C19%20IEC%2C%20SmartSlot%2CExtended%20runtime%2CShort%20depth%20%5BTAA%5D?unique=0c6bd5a)
![APC Smart-UPS X, Line Interactive,3kVA,Rack/tower convertible 4U,208V,2x L6-20R NEMA+4x C13 IEC+2x C19 IEC, SmartSlot,Extended runtime,Short depth [TAA]](/web/image/product.product/839466/image_128/APC%20Smart-UPS%20X%2C%20Line%20Interactive%2C3kVA%2CRack-tower%20convertible%204U%2C208V%2C2x%20L6-20R%20NEMA%2B4x%20C13%20IEC%2B2x%20C19%20IEC%2C%20SmartSlot%2CExtended%20runtime%2CShort%20depth%20%5BTAA%5D?unique=0c6bd5a)
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.
- Ideal for servers, storage, networking & commercial applications
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Short depth UPS provides extra space for cable management
- User-selectable high voltage setting of 200V-240V
- Add up to 10 external battery packs (SMX120BP)
- 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 11 |
| Phase | Single Phase |
| Receptacle Detail | 4 x IEC 320-C13 |
| Receptacle Type | NEMA L6-20P |
| Plug/Connector Type | NEMA L6-20P |
| Number of Battery & Surge Outlets | 11 |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 141 V AC - 280 V AC |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Load Capacity (Watt) | 2700 W |
| Load Capacity (VA) | 3000 VA |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Transfer Time | 2 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 4U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 8.01 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V |
