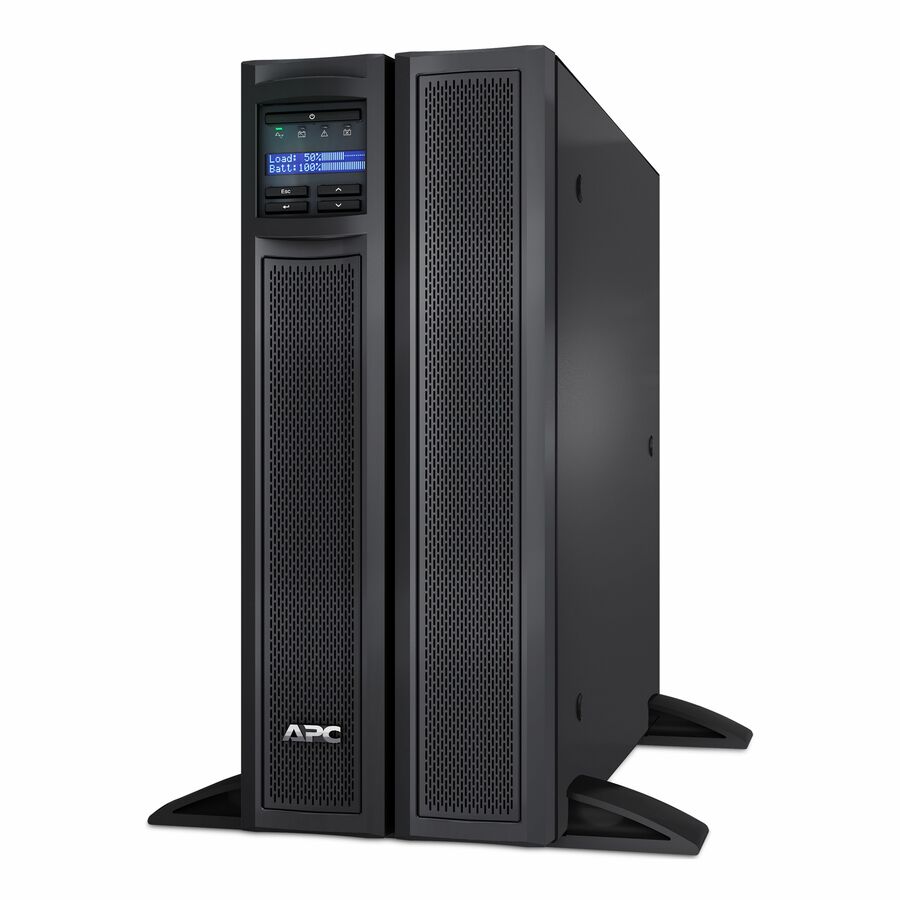

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- Ideal for servers, storage, networking & commercial applications
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Short depth UPS provides extra space for cable management
- User-selectable high voltage setting of 200V-240V
- Add up to 10 external battery packs (SMX120BP)
- 2200VA/1980W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Spill-proof |
| Number of Battery & Surge Out | 12 |
| Emergency Power OFF | Yes |
| Receptacle Detail | 8 x IEC 320-C13 |
| Receptacle Type | Schuko CEE 7/EU1-16P |
| Plug/Connector Type | IEC 320-C20 |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 1980 W |
| Load Capacity (VA) | 2200 VA |
| Backup/Run Time (Full Load) | 10 Minute |
| Backup/Run Time (Half Load) | 25 Minute |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 4U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Alarm | On Battery |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 43.96 W |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Cables | |
|---|---|
| Cord Length | 6.56 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Lead Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Miscellaneous | |
|---|---|
| Product Name | Smart-UPS X 2200VA Rack/Tower LCD 200-240V |
